Installation Position

WARNING: This page is about a different variant/trim than selected.

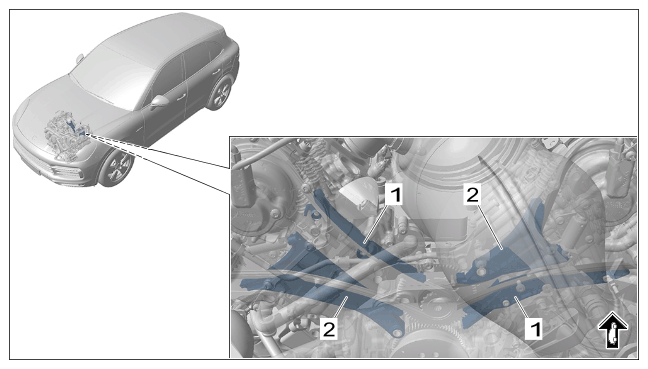

Fig 1: Guide And Tensioning Rails Components Location
G15209137Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1 Guide rail
2 Tensioning rail
