Remove The Control Chain
NOTIFICATION
Timing not set correctly
- Risk of engine damage
- Rough running engine
- Loss of engine power
→ Do not use force when fitting the staking tool.
→ Make sure that the gap is equal on both sides.
→ When inserting the staking tools, do not use force to turn the camshafts against any resistance.
→ The engine must be exactly at top dead centre.
→ The opposite cylinder must be at ignition TDC.
- > T40263 - Wrench a/f 21
(-2-
) and > T40314 - adapter
(-1-
) must be fitted on the crankshaft (-3-
).

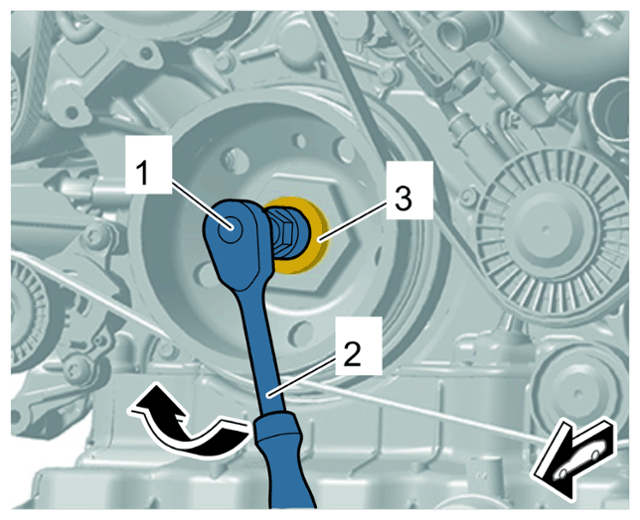

Tools on crankshaft
- Use > T40263 - wrench a/f 21
and > T40314 - adapter
to turn the crankshaft clockwise until the marking on the vibration damper (-1-
) is positioned at TDC
(-2-
).

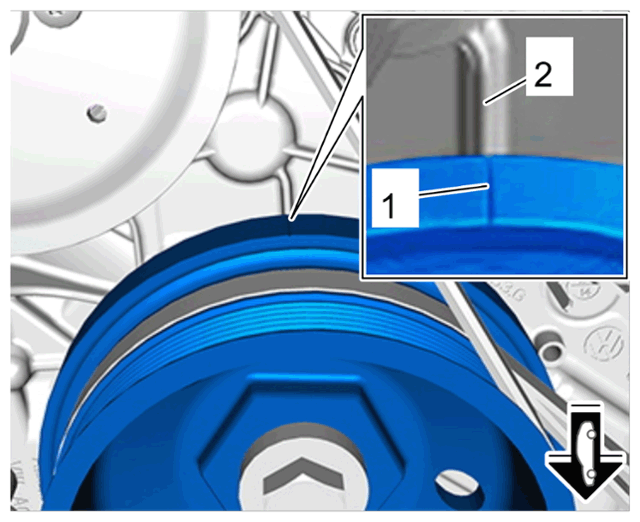

TDC marking on vibration damper

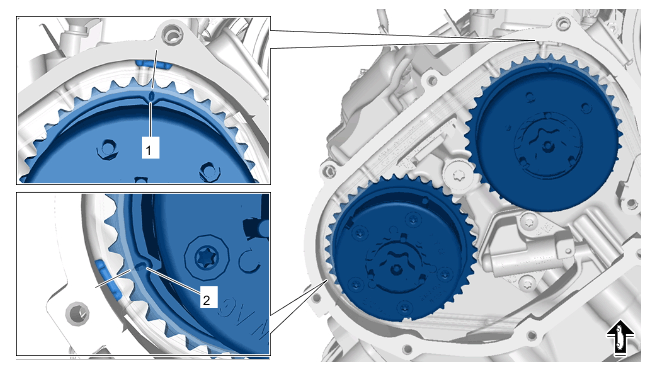

- The markings on the camshaft actuators (cylinder bank 1) -1 and 2-
must be aligned with the reference points -Arrows-
on the camshaft housing. Turn the crankshaft further by one turn if necessary.

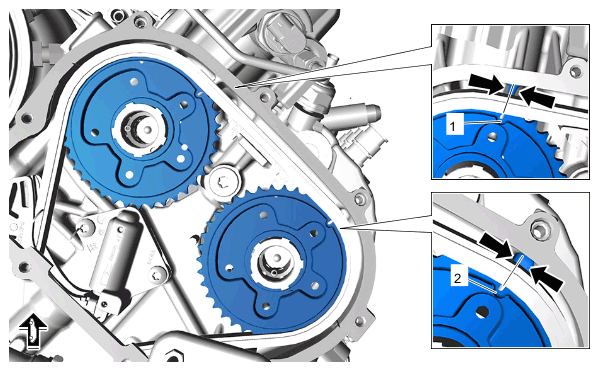

Markings on camshaft actuator (cylinder bank 1)
- The markings on the camshaft actuators (cylinder bank 2) -1 and 2-
must be aligned with the reference points -Lines-
on the camshaft housing.
Markings on camshaft actuator (cylinder bank 2)

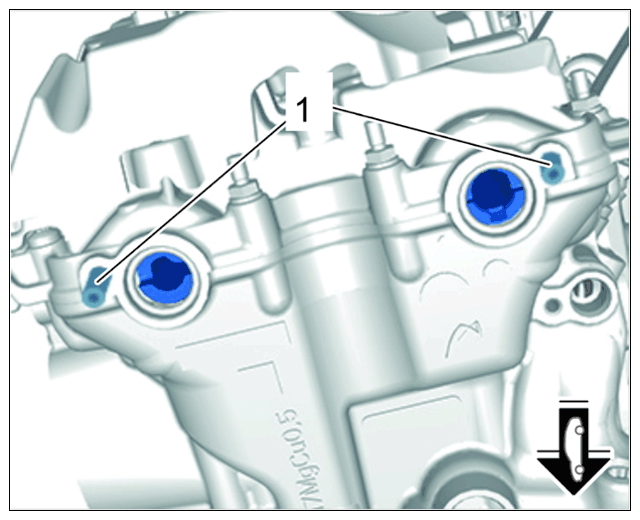

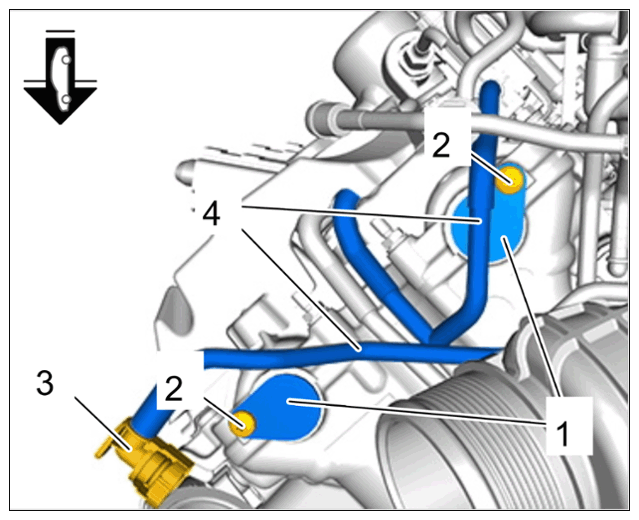

- Remove stoppers on camshafts (-1- ).
- Screw adapter T40331/2
(-1-
) from tool set > T40331 - clamp camshaft
into the camshaft housing and tighten with 9 Nm ((6.5 ftlb.)
.
Adapter on camshaft housing
Information
The camshaft clamp must be easy to insert and must not be fitted using a striking tool.

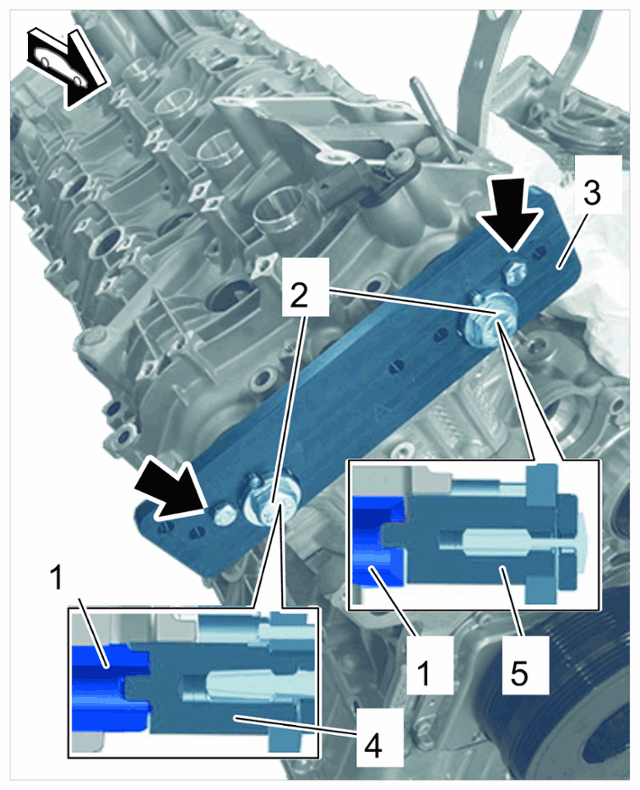

- Fit camshaft clamps > T40331 - camshaft clamp
(-2 to 5-
).
- 7.1 Camshaft clamp 40331/1
(-3-
)
Right cylinder bank 1: insert with inscription "A" facing away from the engine.
Right cylinder bank 2: Insert with inscription "B" facing away from the engine.
Turn the crankshaft back and forth slightly to do this, if necessary.
- 7.2 Right cylinder bank 1: Secure camshaft clamps T40331/1, T40331/4 and T40331/5
(-3 to 5-
) using T40331/9
(-2-
).
Left cylinder bank 2: Secure camshaft clamps T40331/1, T40331/6 and T40331/5 (-3 to 5- ) using T40331/9 (-2- ).
T40331/9 (-2- ) must be screwed in by hand. Tighten screws on the camshaft clamps -Arrows- to 9 Nm (6.5 ftlb.) .
Camshaft clamp
- 7.1 Camshaft clamp 40331/1
(-3-
)

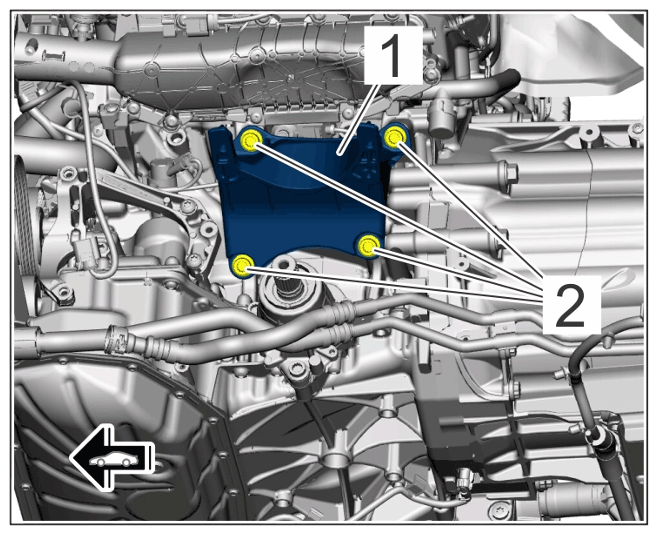

- Remove left bracket for engine mount -1- .
- Secure the crankshaft.
- Fit > VAS 261 001 - ring spanner insert, a/f 41
with > T90001 - counter-hold tool
on the camshaft actuator.

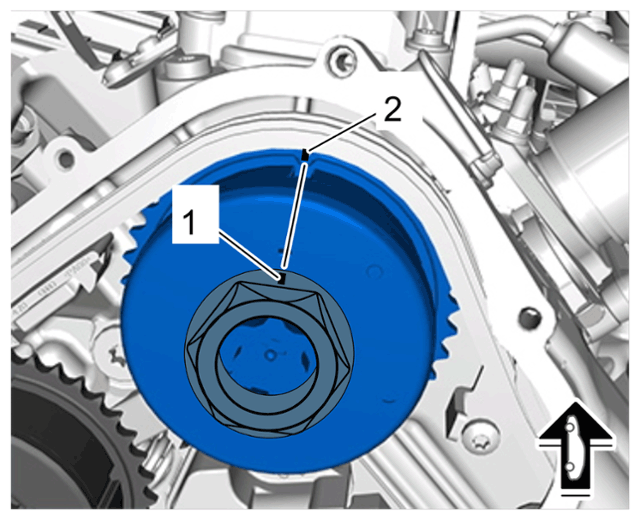

The > T90001 - counterhold tool can only be inserted at one position. To do this, the markings (-1 and 2- ) on the camshaft actuator and chain housing must be aligned.
Special tool T90001 on camshaft actuator
- Release camshaft actuator (-1-
).
- 11.1

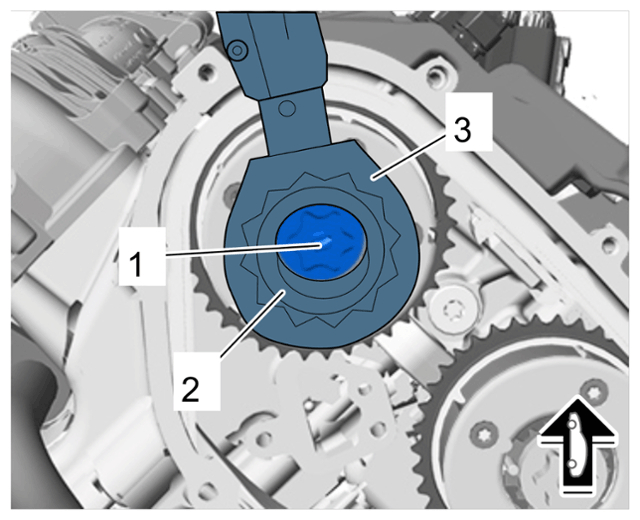

Counter the camshaft actuator (-1-
) using > VAS 261 001 - ring tool attachment, a/f 41
(-2-
) and > T90001 - counterhold tool
and loosen using > T90000 - socket E24
(-3-
).
Do not unscrew the camshaft actuator (-1- ) from the camshaft.
- 11.2
Mark camshaft actuators and camshafts for re-installation using a colored marker.
Camshaft actuator
- 11.1
Counter the camshaft actuator (-1-
) using > VAS 261 001 - ring tool attachment, a/f 41
(-2-
) and > T90001 - counterhold tool
and loosen using > T90000 - socket E24
(-3-
).

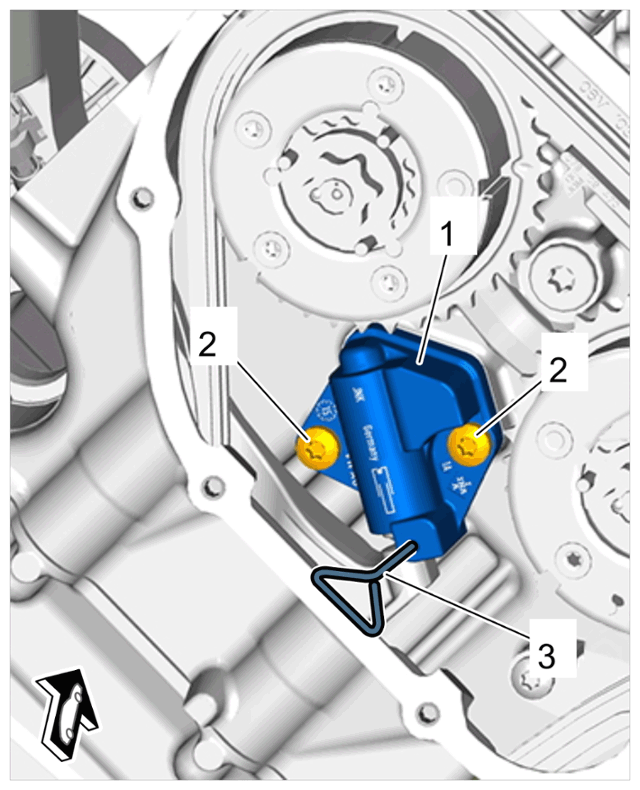

- Lock both chain tensioners.
Information
The chain tensioner piston is oil-damped and can only be pressed back slowly and with constant pressure.
- Unscrew control valves and remove camshafts actuators.

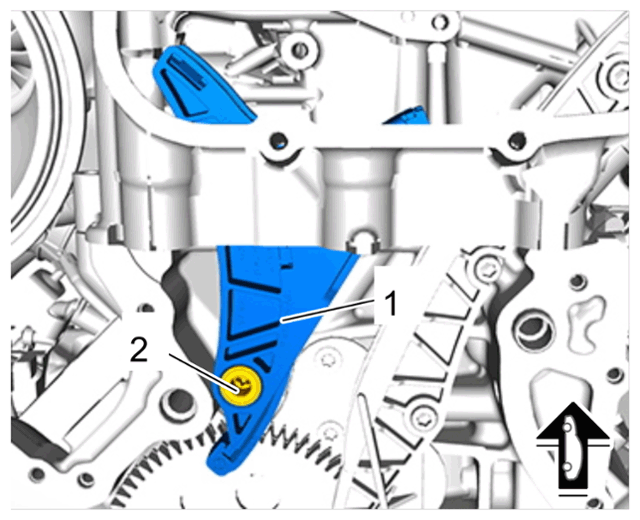

- Remove tensioning rail (-1- ).
- Remove timing chains together with tension rail.
