Subsequent Work

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

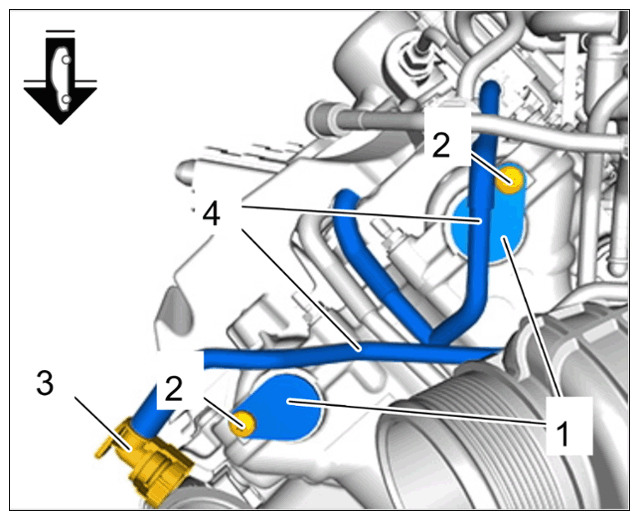

Stoppers on camshafts.

1. 2.1  Insert stoppers on camshafts -1-  .
2. 2.2  Fit and tighten screws for stoppers -1-  .

   > Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

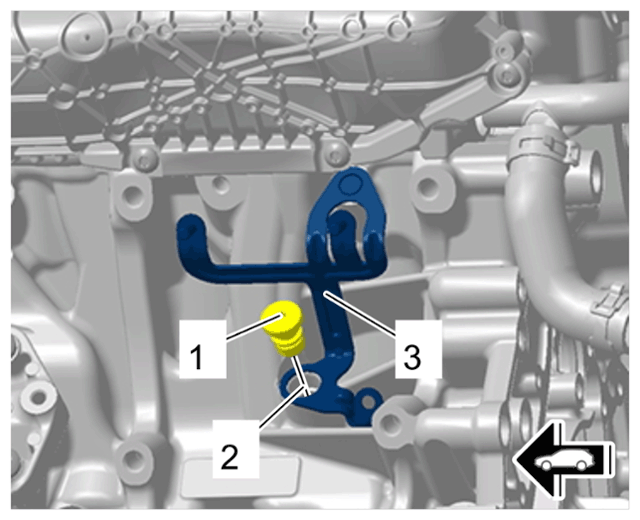

Screw plug for crankshaft

1. 3.1  Position holder for vacuum reservoir -3-  .
2. 3.2  Fit screw plug in bore for crankshaft locking pin and tighten it.

   Old variant with O-ring - replace O-ring:  > Tightening torque 25 Nm (18.4 ftlb.)

   New variant with micro-encapsulation - Use new screw plug:  > Tightening torque 40 Nm (29.5 ftlb.)

> 100113 SECURING ENGINE ON ASSEMBLY SUPPORT (V6 TURBO)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

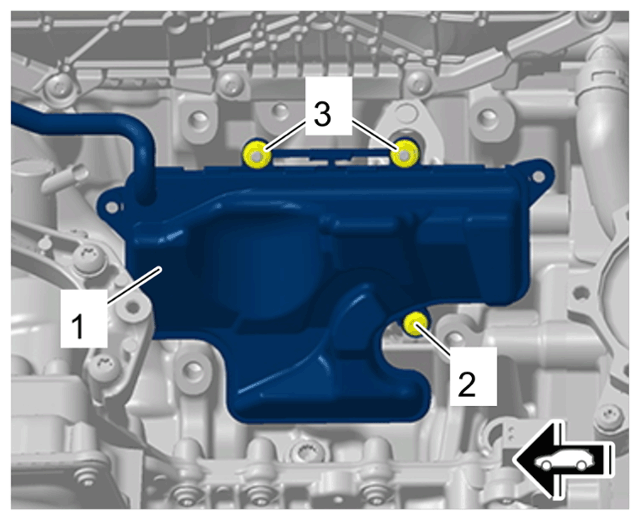

Vacuum reservoir

1. 5.1  Position vacuum reservoir -1-  .
2. 5.2  Screw on and tighten nuts -3-  .

   > Tightening torque 9 Nm (6.5 ftlb.)

3. 5.3  Fit and tighten screws -2-  .

   > Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

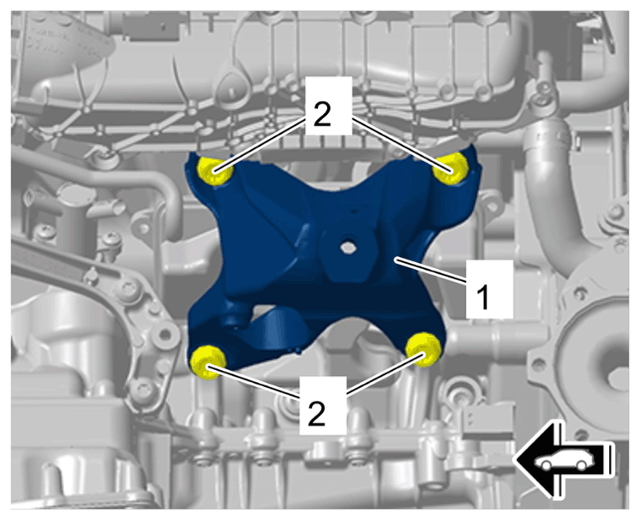

Left engine carrier

1. 6.1  Position left engine carrier -1-  .
2. 6.2  Fit and tighten screws -2-  .

   > Tightening torque 55 Nm (40.6 ftlb.)

> 100127 REMOVING AND MOUNTING ENGINE

> WM, 244619 REMOVING AND INSTALLING CENTRE INTAKE-AIR DISTRIBUTOR (V6 MONOTURBO)

> Refer to the appropriate service information.

> 153319 REMOVING AND INSTALLING UPPER CHAIN HOUSING COVER (V6 TURBO)
