Removing Trim Panel For Rear Lid

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

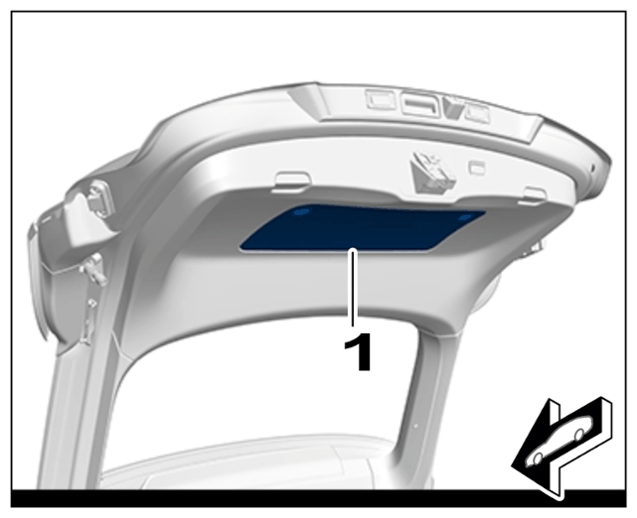

Remove warning triangle cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Warning triangle cover

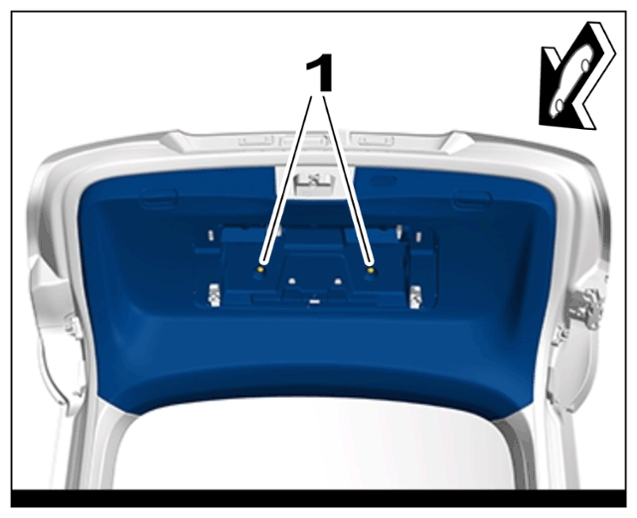

Remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on trim panel for rear lid, bottom

Information

Start at the rear window when removing the trim panel.

Information

To prevent damage, use a suitable tool as a support during removal at accessible connection points.

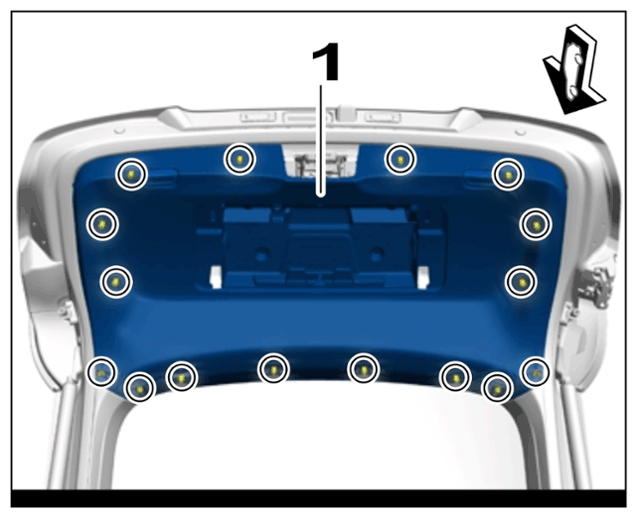

Unclip trim panel for rear lid at the bottom -1- and remove it from the rear lid.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel for rear lid, bottom

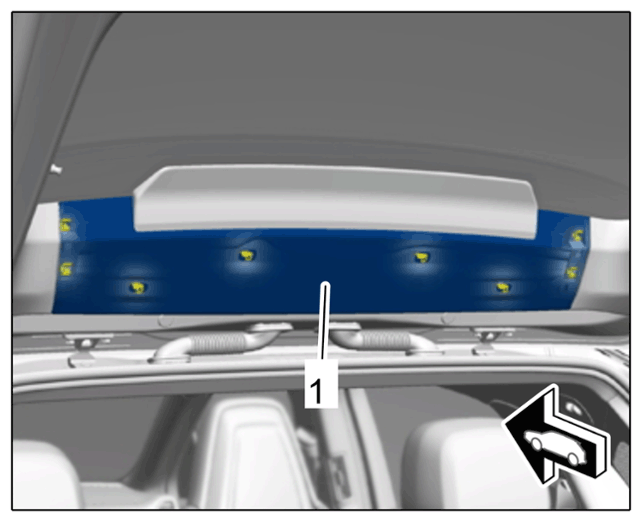

Unclip and remove trim panel for window frame at the centre -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel for window frame, centre

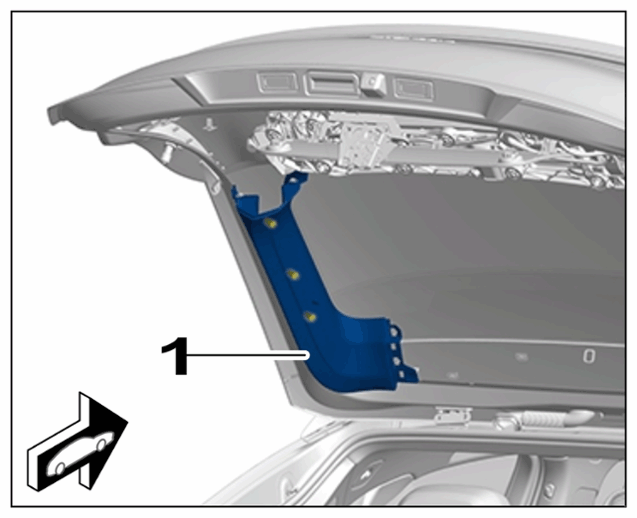

Unclip and remove trim panel for window frame at the side -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel for window frame, side
