Remove Roof Console: Notes

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip front roof console -1-  starting at the rear -Arrow-  .
    G15240380Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front roof console

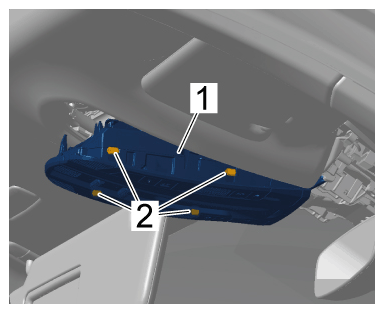

  2. Unclip front roof console -1-  at the sides from the locking lugs -2-  and swivel it downwards.
    G15240381Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front roof console locking lugs

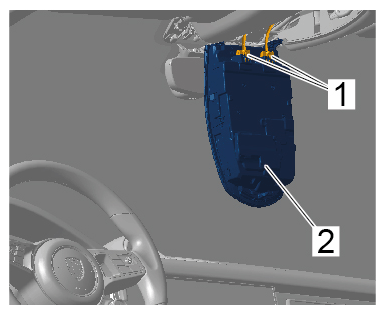

  3. Swivel front roof console -2-  down and release and disconnect electric plug connections -1-  .
    G15240382Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections, front roof console

  4. Remove front roof console.
