Subsequent Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

For sun blind (on door window):

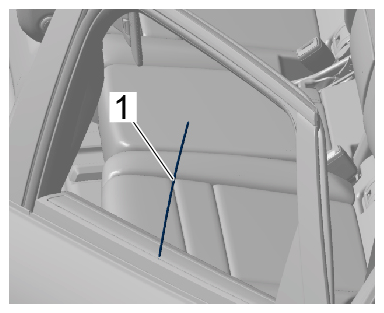

1.1 Extend actuating rod -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Actuating rod

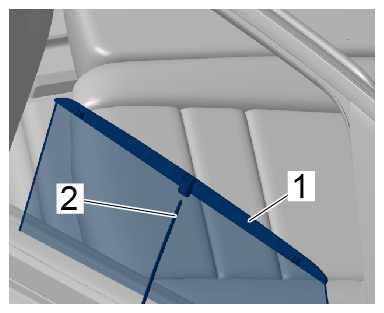

1.2 Clip in sun blind (on door window) -1- at the actuating rod -2- until it engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun blind (on door window)

Install trim for rear door panel.
- > 70611903 REMOVING AND INSTALLING REAR DOOR PANEL TRIM
Install door warning light.
- > WM, 961619 REMOVING AND INSTALLING DOOR WARNING LIGHT
