Subsequent Work
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Press carpet aside close to the screw -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

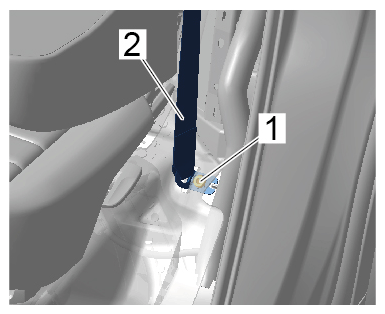

Seat belt mount
- Screw in screw -1-
and tighten to > Tightening torque 40 Nm (30 ftlb.)
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screw for belt fitting
- Install (lower part of) C-pillar trim panel.
