Subsequent Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always replace self-locking screws.

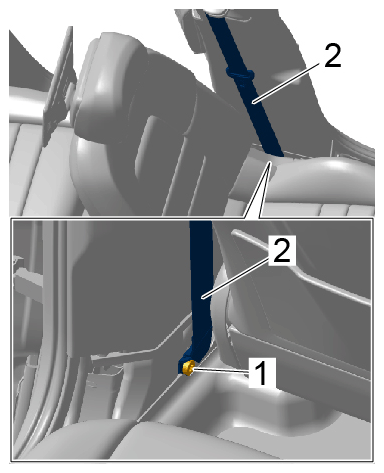

Fit three-point seat belt -2- at the bottom, screw in screw -1- and tighten to > Tightening torque 40 Nm (30 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Three-point seat belt
Install inner door sill trim.
- > 680519 REMOVING AND INSTALLING INNER DOOR SILL TRIM
Only for 4-zone Climatronic (I-no. 9AQ 9AE)

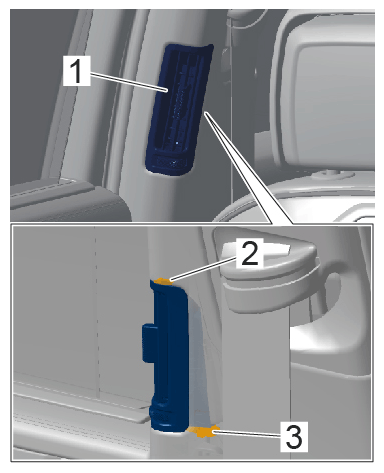

Install air vent for B-pillar trim panel (upper part) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B-pillar air vent
1. 3.1 Plug in and lock electric plug connection -3- .
2. 3.2 Clip air vent for B-pillar trim panel (upper part) -1- into B-pillar trim panel (upper part) -2- .
