Preliminary Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Only for 4-zone Climatronic (I-no. 9AQ; 9AE)

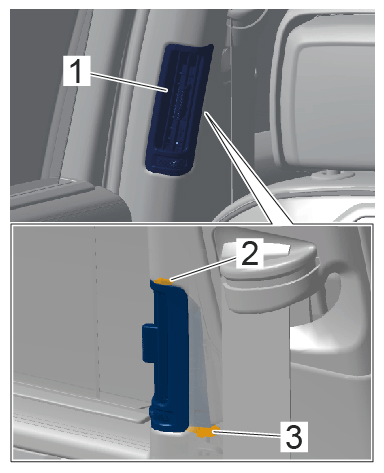

Remove air vent for B-pillar trim panel (upper part) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B-pillar air vent
1. 1.1 Carefully unclip air vent for B-pillar trim panel (upper part) -1- from B-pillar trim panel (upper part) using a suitable tool at the locking lug -2- and remove it until the electric plug connection -3- is accessible.
2. 1.2 Release and disconnect electric plug connection -3- and remove air vent for B-pillar trim panel (upper part)
Remove inner door sill trim.
- > 680519 REMOVING AND INSTALLING INNER DOOR SILL TRIM
Information

Before unscrewing the screw, secure three-point seat belt to prevent it from rolling up.

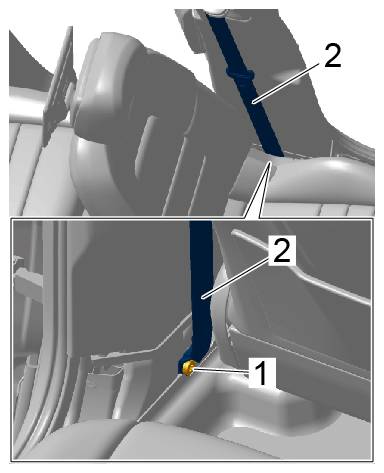

Unscrew screw -1- and remove three-point seat belt -2- at the bottom.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Three-point seat belt
