Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	De...	Type	Basic v...
Screws for armrest	Item 1	Tightening torque	2.3 Nm (1.6 ftlb.)
Screws for armrest	item 2	Tightening torque	2.8 Nm (2.1 ftlb.)

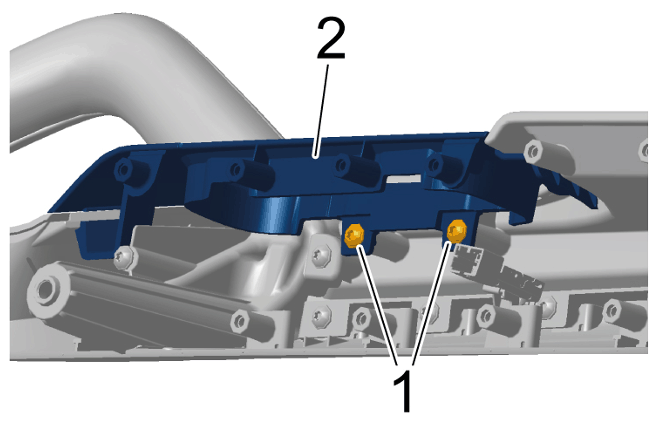

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Armrest
Screws for armrest trim	Item 2	Tightening torque	2.3 Nm (1.6 ftlb.)

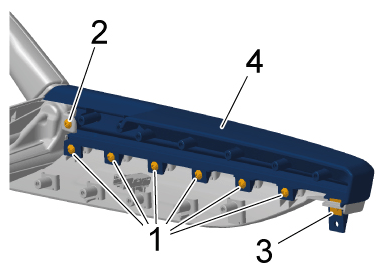

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for armrest trim
Screws for armrest	Item 1	Tightening torque	2.3 Nm (1.6 ftlb.)
Screws for armrest	Item 2	Tightening torque	2.8 Nm (2.1 ftlb.)

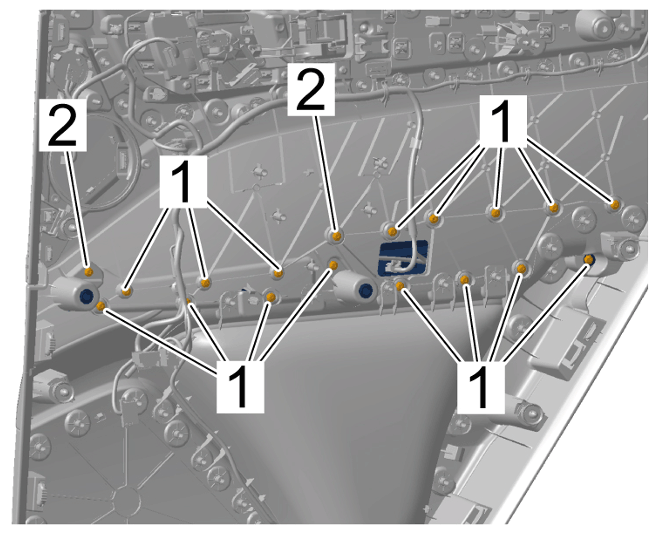

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
