Removing Front Handle

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

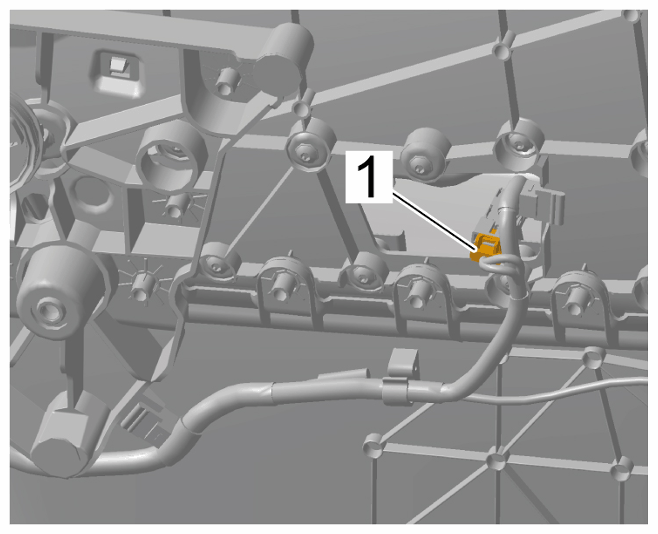

  1. Release and disconnect electric plug connection -1-  on ambient lighting.
    G15240322Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

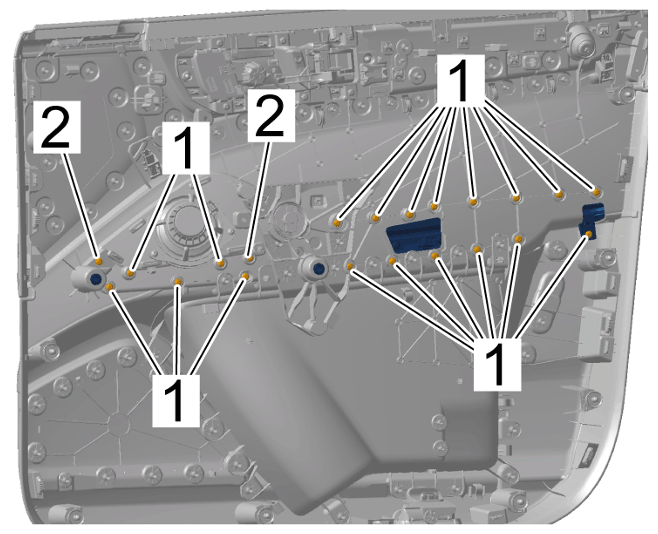

  2. Unscrew screws -1 and 2-  and remove front handle together with the armrest.
    G15240323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  3. Loosen sound absorber from front door panel.

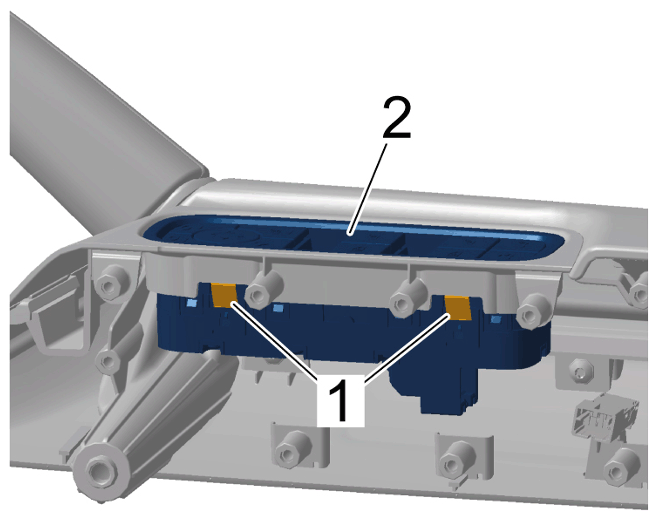

  4. Press retaining lugs -1-  together all the way around and remove switch for power windows -2-  by pulling it up out of the armrest.
    G15240324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switch for power windows

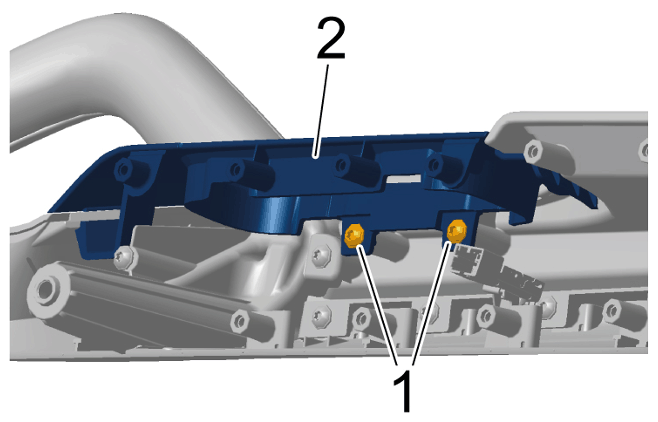

  5. Unscrew screws -1-  and remove trim -2-  .
    G15240325Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on trim

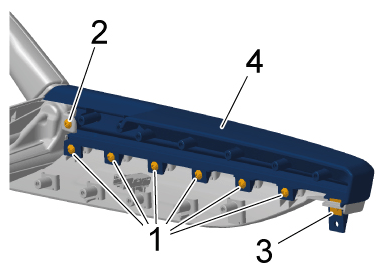

  6. Unscrew screws -1 and 2-  , release retaining lug -3-  and remove armrest -4-  by pulling it upwards.
    G15240326Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Armrest

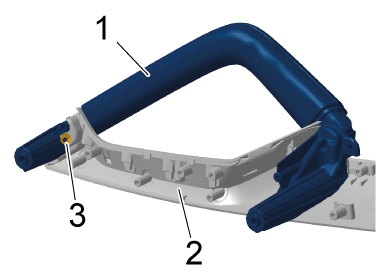

  7. Pull off retaining clip -3-  and remove handle -1-  from lower tray of the armrest -2-  .
    G15240327Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Handle
