Removing Trim For Front Door Panel

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

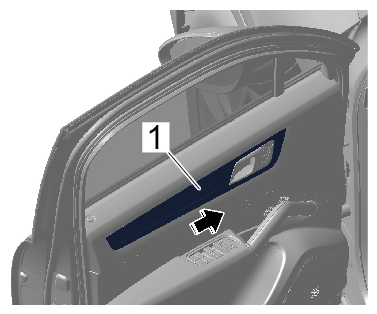

  1. Unclip trim for front door panel -1-  from back to front using a plastic wedge.
    G15240302Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim for front door panel

  2. Push trim for front door panel -1-  forward -Arrow-  and remove it.
    G15240303Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim for front door panel
