Remove Front Door Panel

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

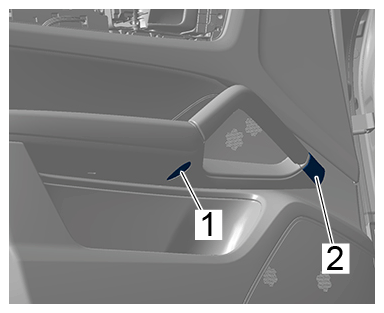

Unclip trims at the upper edge -1- using a plastic wedge and swivel them down and out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trims
Push trims -2- forward using a plastic wedge and remove them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trims

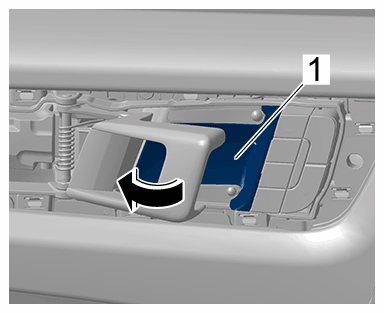

Open door handle -Arrow- and unclip cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

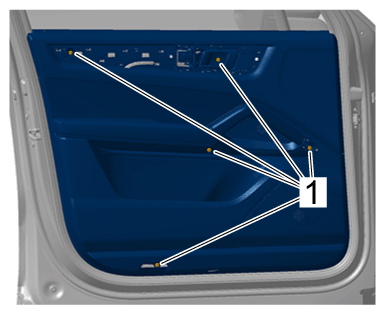

Unscrew screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

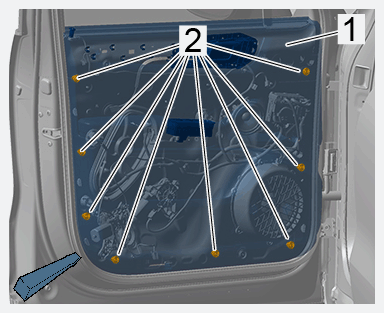

Unclip clips -2- in front door panel -1- using a plastic wedge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips
Remove front door panel by pulling it upwards until the electric plug connections and cable for door opener are accessible.

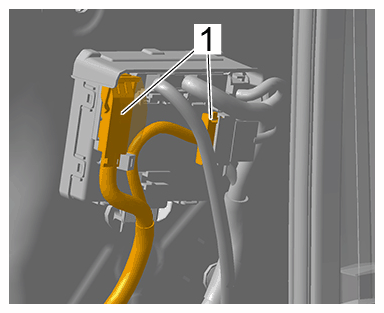

Release electric plug connections -1- and disconnect them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
Disengage cable for door opener -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable for door opener

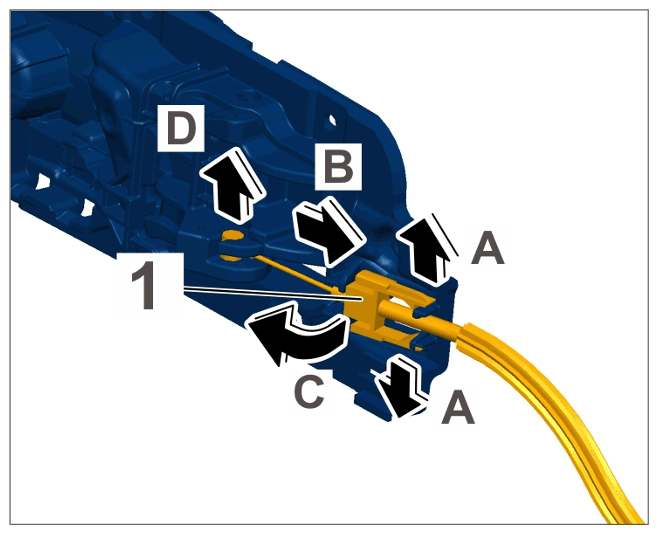

1. 8.1 Spread locking lugs outwards -arrow A- and pull cable for door opener -1- to the rear -Arrow B- .
2. 8.2 Swivel cable for door opener -1- in direction of arrow -Arrow C- until the actuator at the front is free.
3. 8.3 Remove cable for door opener -1- (-Arrow D- ).
Remove front door panel.
