Preliminary Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front side-section trim panel.
  2. Remove footrest.

    Information

    To prevent damage, use a suitable tool as a support during removal at accessible connection points.

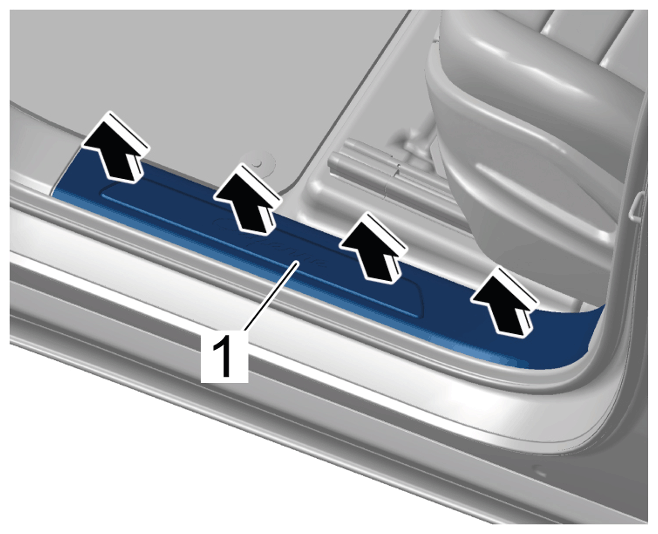

  3. Unclip inner door sill trim -1-  at the front using a suitable tool -Arrows-  until the A-pillar trim panel (lower part) is accessible.
    G15240281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front inner door sill trim

    Driver's side only:

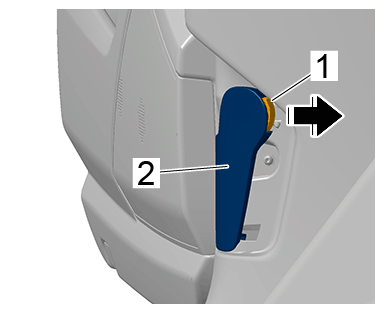

  4. Release lock -1-  using a suitable tool -Arrow-  and remove front lid release lever -2-  .
    G15240282Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lid release lever
