Removing Cover For Front Lock Support
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Remove expansion rivets -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Expansion rivets

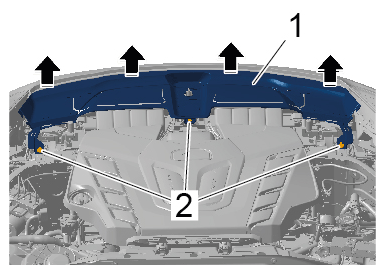

- Unclip cover for front lock support -1-
from front apron -Arrows-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Cover for front lock support
- Remove cover for front lock support.
