Removing Trim Panel For Dashboard (Driver's Side)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

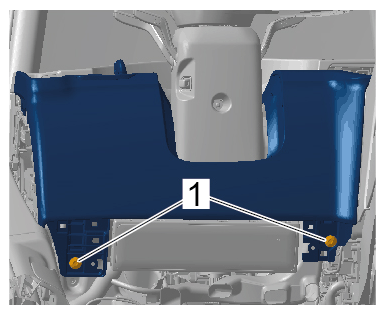

  1. Unscrew screws at the bottom -1-  .
    G15240234Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bottom screws

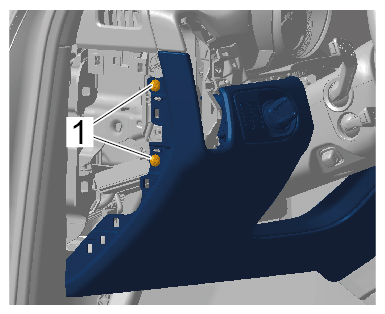

  2. Unscrew screws at the sides -1-  .
    G15240235Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side screws

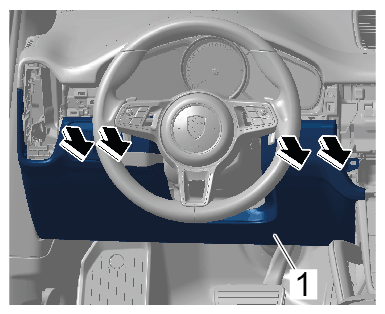

  3. Unclip and pull out trim panel for dashboard (on driver's side) -1-  (-Anows-  ) until the electric plug connections are accessible.
    G15240236Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel for dashboard (driver's side)

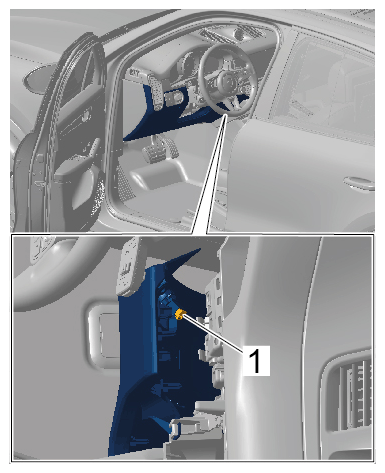

  4. Release and unplug electric plug connection -1-  .
    G15240237Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

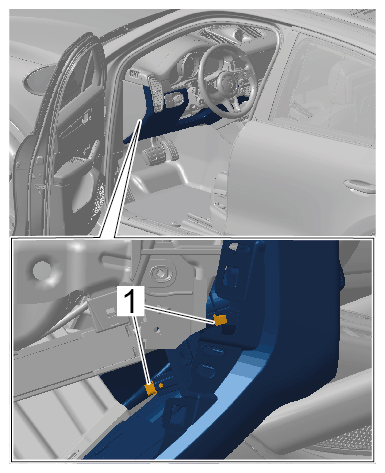

  5. Release and unplug electric plug connections -1-  .
    G15240238Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections
