Removing Lid Proximity Sensor Control Unit

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and unplug electric plug connections -2-  .
    G15261039Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

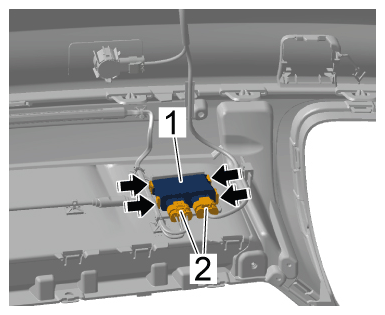

  2. Unclip lid proximity sensor control unit -1-  from holder -Arrows-  .
G15261040Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lid proximity sensor control unit
