Removing Lower Part Of Lid Lock At Rear
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Moving components
→ Do not reach into the danger area.
→ Secure the system to prevent it from being activated accidentally.
→ Keep third parties away from the danger area.
- Danger of limbs being trapped or severed
→ Do not reach into the danger area.
→ Secure the system to prevent it from being activated accidentally.
→ Keep third parties away from the danger area.

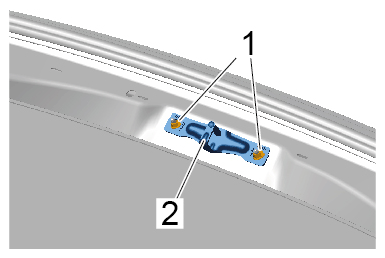

- Unscrew fastening nuts -1- and remove lower part of rear lid lock -2- .
Fastening nuts
