Installing Lower Part Of Rear Lid Lock

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten fastening nuts -1-  slightly by hand.
    G15261001Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nuts

  2. Move lower part of rear lid lock into installation position.
  3. Position lower part of rear lid lock -2-  on the old impressions.

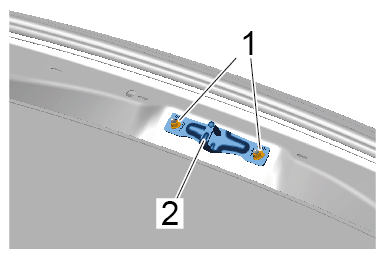

    G15261002Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lower part of rear lid lock

    Check position of lower part of rear lid lock -2-  and correct it if necessary.

  4. Tightening fastening nuts -1-  . > Tightening torque 21 Nm (16 ftlb.)  ↓
