Removing Switching Element For Filler Flap
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Press retaining lug -1-
upwards -arrow A-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

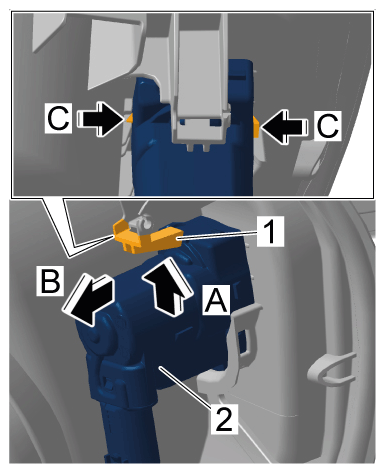

Filler flap switching element
- Tilt filler flap switching element -2-
to the rear -arrow B-
and remove it from the retaining lugs -arrow C-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Filler flap switching element
