Removing Filler Flap (Module)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

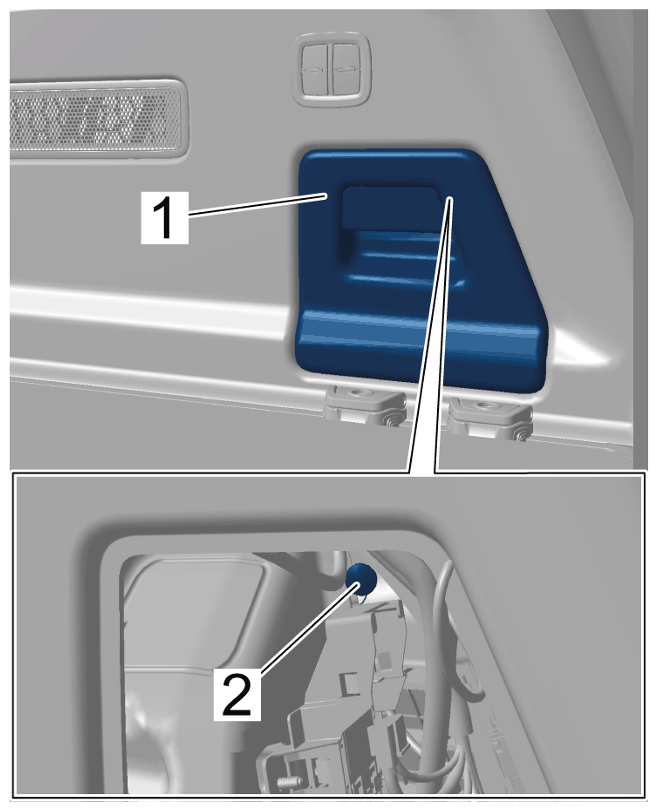

Remove cover -1- from side trim panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Emergency release
Disengage filler flap (module) emergency release -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Emergency release

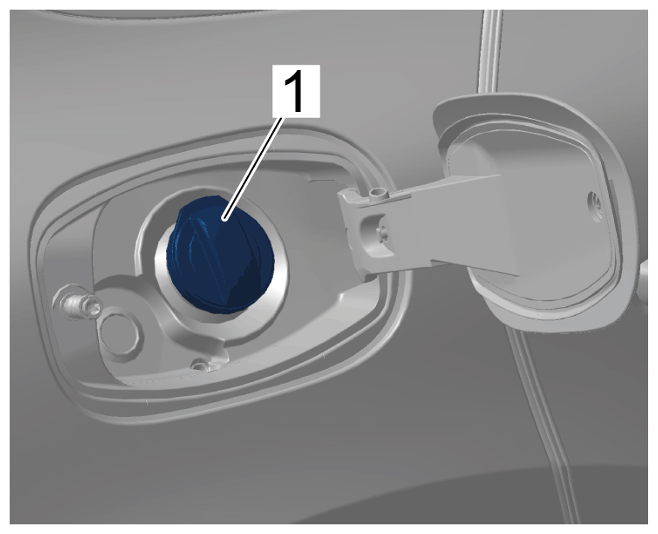

Open fuel tank cap -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel tank cap

Information

The filler flap (module) will be damaged during removal and must be replaced during installation.

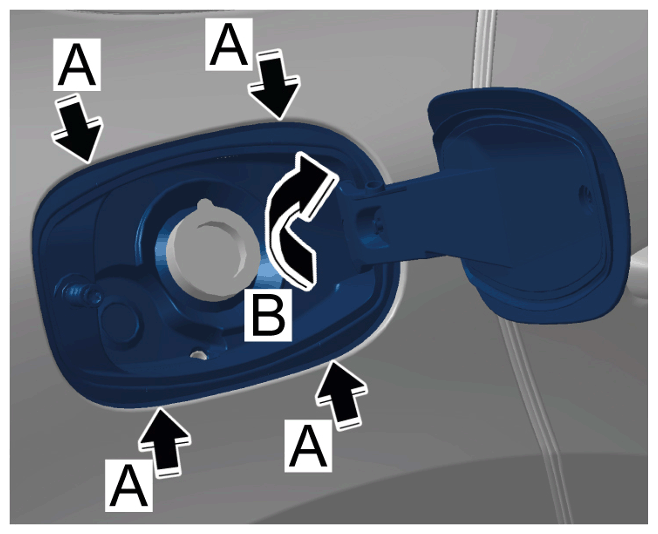

At the marked positions -arrows A- , pierce the module using a screwdriver.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking lugs on inner part of filler flap (module)
Release locking lugs -arrows A- on inner part of filler flap (module).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking lugs on inner part of filler flap (module)
Press rubber sleeve in -direction of arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking lugs on inner part of filler flap (module)

Information
- Remove the filler flap carefully so as not to damage the paintwork on the side wall.

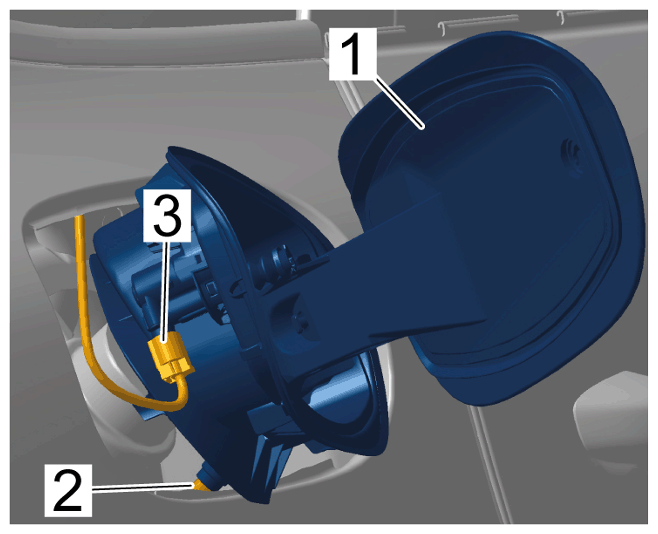

Swivel filler flap (module) -1- out of the body aperture until the electric plug connection -3- is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Filler flap (module)

Pull drain hose -2- off the filler flap (module) -1- .

Release and unplug electric plug connection -3- .

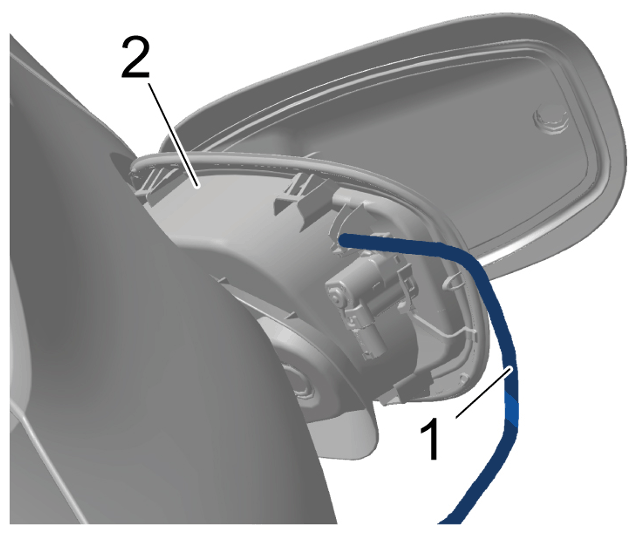

Disengage emergency release -1- and remove filler flap (module) -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Emergency release
