Removing Front Pneumatic Spring
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Incorrect handling of gas-filled shock absorbers
→ Gas-filled shock absorbers must be in idle state before removal.
→ Open the lid.
→ Secure the lid to prevent it from closing accidentally following removal of the gas-filled shock absorbers.
→ Do not use force to open the gas-filled shock absorbers because of their high internal pressure.
- Gas-filled shock absorbers can burst
- Risk of eye injuries
- Risk of bruising
→ Gas-filled shock absorbers must be in idle state before removal.
→ Open the lid.
→ Secure the lid to prevent it from closing accidentally following removal of the gas-filled shock absorbers.
→ Do not use force to open the gas-filled shock absorbers because of their high internal pressure.
Information
The help of another person is required.
- A second person must hold the front lid to prevent it from falling down.

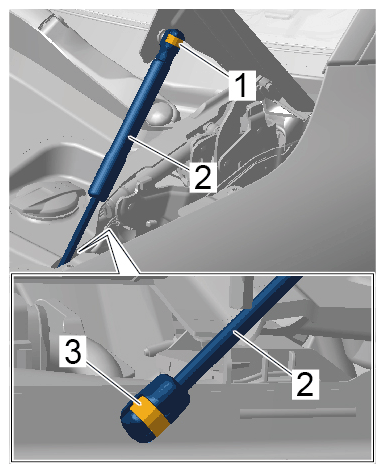

- Loosen safety clip at the top -1-
using a suitable tool and pull front pneumatic spring -2-
off the ball pin at the top.
Front pneumatic spring
- Loosen safety clip at the bottom -3-
using a suitable tool and pull front pneumatic spring -2-
off the ball pin at the bottom.
Front pneumatic spring
- Remove front pneumatic spring.
