Removing Front Lid

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

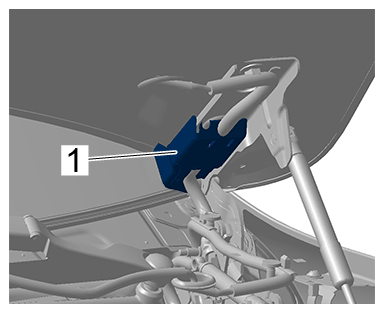

Remove cable cover -1- from hinge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover
Disconnect windscreen washer system hose from front lid.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose

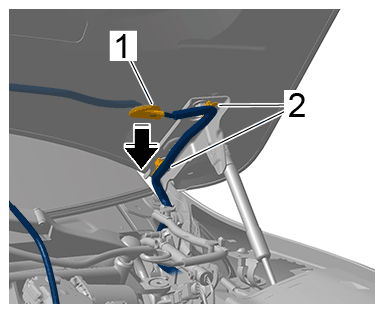

Pull grommet -1- out of the front lid -Arrow- .

Unclip hose fastenings -2- on the hinge.

Pull hose out of the lid.

Information

The help of another person is required.
Get another person to hold the front lid to prevent it from falling down.
Information

The help of another person is required.

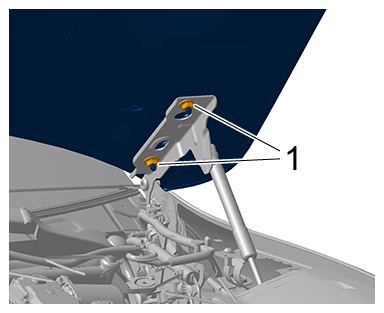

Unscrew nuts -1- on the front lid and remove front lid.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
