Removing Front Lock Upper Part

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

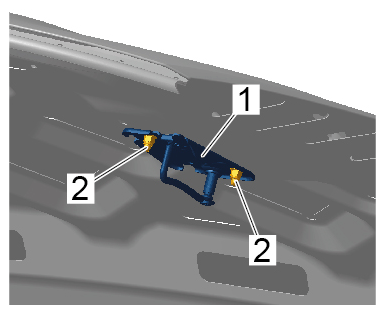

  1. Unscrew nuts -2-  and remove front lock upper part -1-  .
G15260923Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock upper part
