Installing Front Lock Upper Part

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

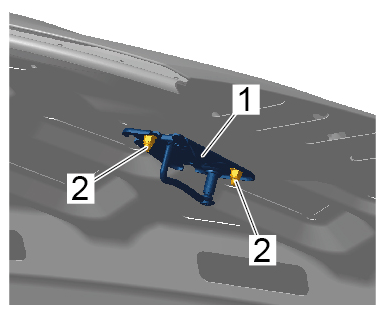

Position front lock upper part -1- and fit nuts -2- by hand.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock upper part

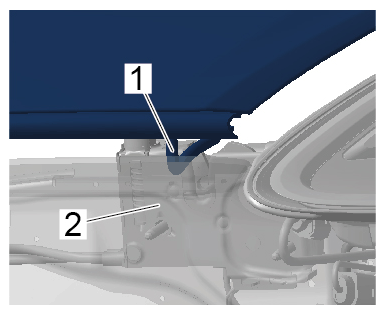

Close the lid slowly until the clip -1- for the front lock upper part is touching the lower part of the lock -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of lock
Position front lock upper part so that the clip -1- is centred flush with the slot in the lower part of the lock -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of lock
Open the lid again and tighten nuts -2- to > Tightening torque 8 Nm (6 ftlb.) ↓.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock upper part
