Removing Front Lock Lower Part

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Loosen front lock lower part.

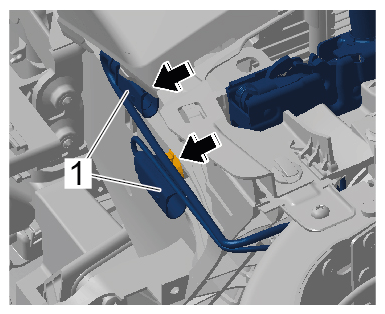

Unclip electric plug connections -1- from front lock carrier -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

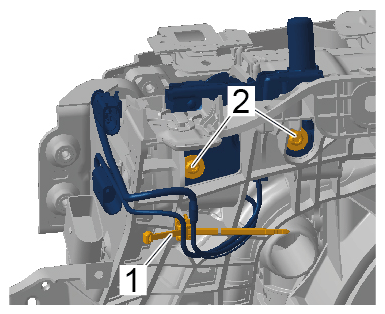

Pull off cable holder -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable holder

Unscrew fastening screws -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

Pull front lock lower part up and out until the bowden cable, release element and microswitch are accessible.

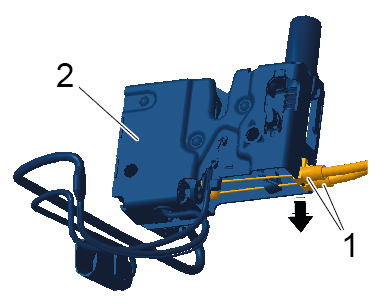

Release microswitch -1- using a suitable tool and pull it out of the front lock lower part -2-Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Microswitch

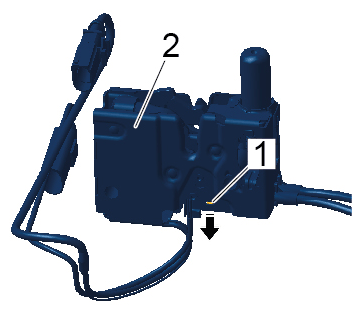

Unclip bowden cables -1- from front lock lower part -2-Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bowden cables
Remove front lock lower part.
