Removing Operating Cable For Front Lid Lock

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

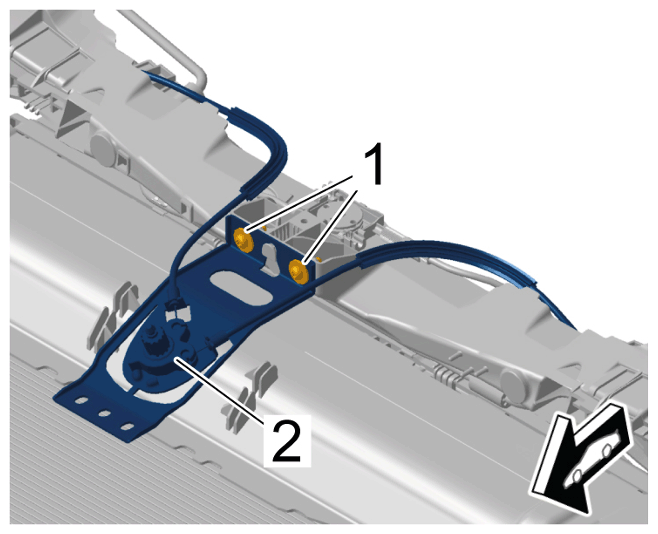

1. Unscrew screws -1-  and remove release element -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws and release element

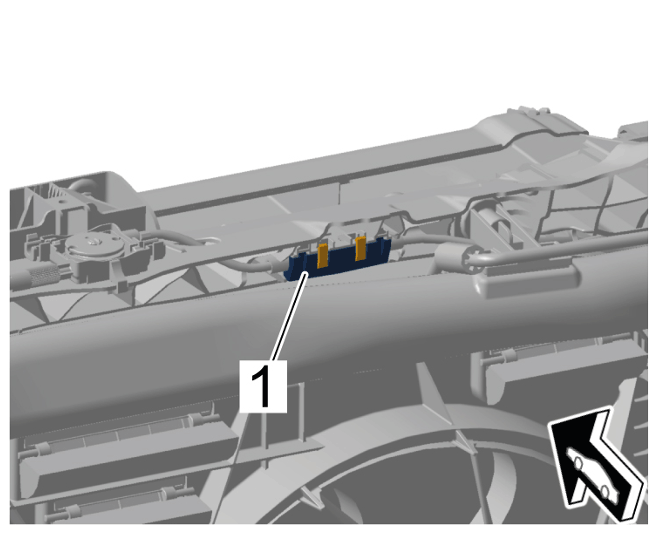

2. Unclip cover -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

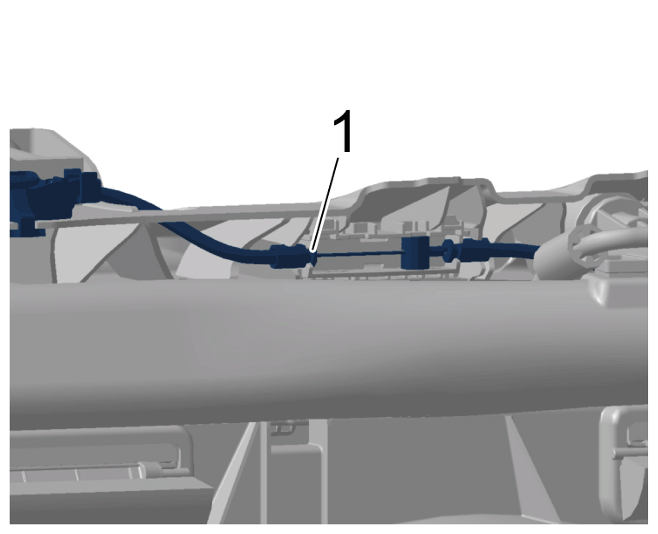

3. Unclip operating cable -1-  from coupling housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Operating cable

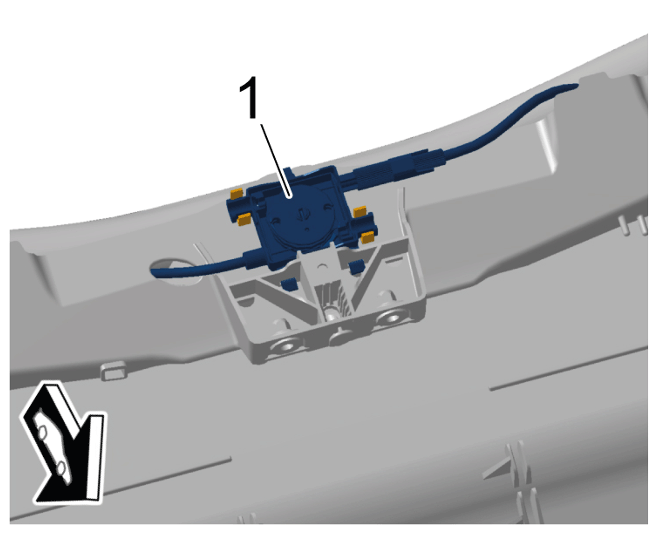

4. Unclip deflection unit -1-  on the lock carrier.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Deflection unit
