Removing Front Lid Release

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

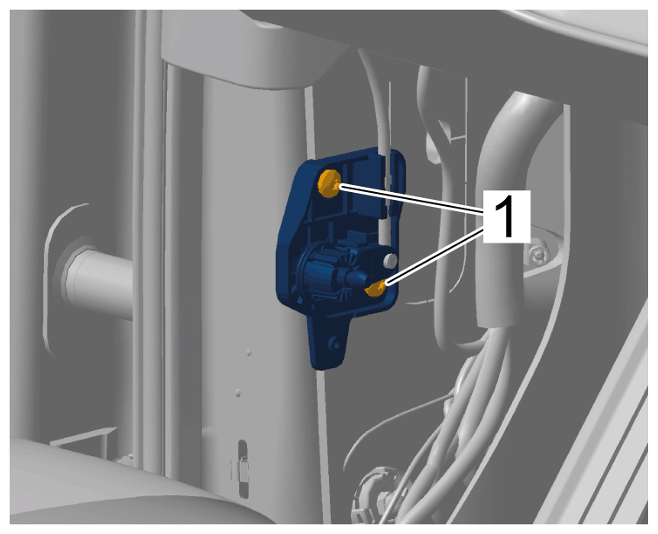

  1. Unscrew fastening screws -1-  .
    G15260906Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

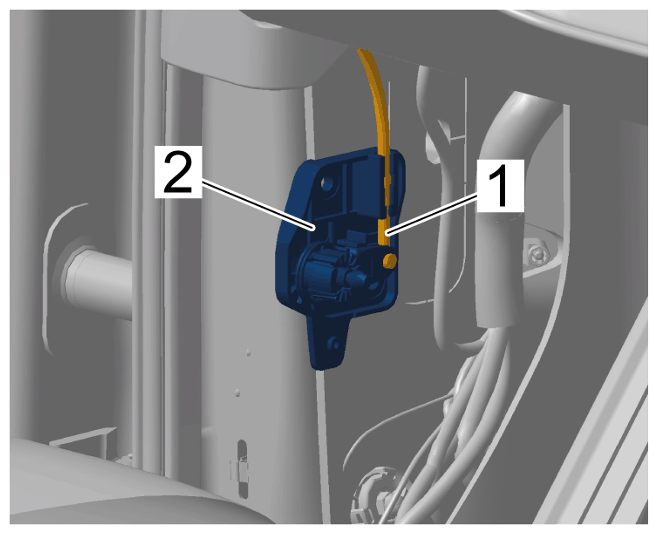

  2. Disengage bonnet cable -1-  and remove front lid release -2-  .
G15260907Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonnet cable
