Removing Switch For Memory Seat Adjustment

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTIFICATION

Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

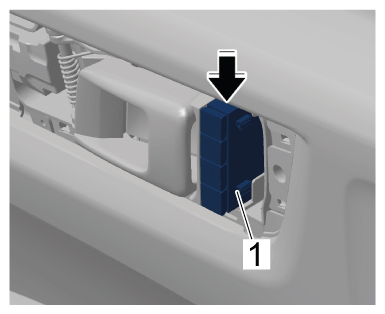

Unclip switch for memory seat adjustment -1- using a suitable tool -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch for memory seat adjustment
Release and unplug electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

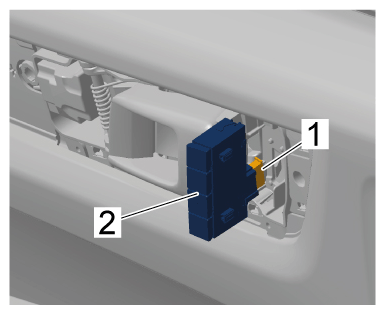

Remove switch for memory seat adjustment -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch for memory seat adjustment
