Removing Control Unit For Memory Seat Adjustment

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work.
Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
Do not touch electric pins and plug contacts.

Move front seat all the way back and up.
NOTIFICATION

Voltage peaks
- Risk of damage to electrical load or to the control unit
  → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

  → Switch off electrical loads before disconnecting or removing them.

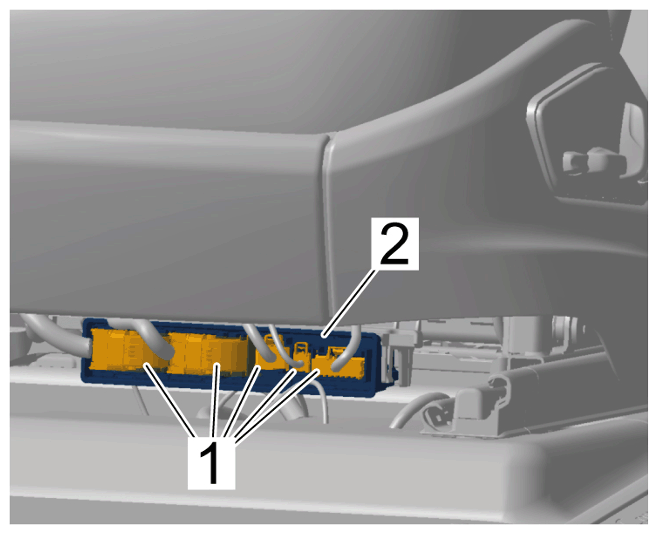

Release electric plug connections -1- and disconnect them from control unit for memory seat adjustment -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

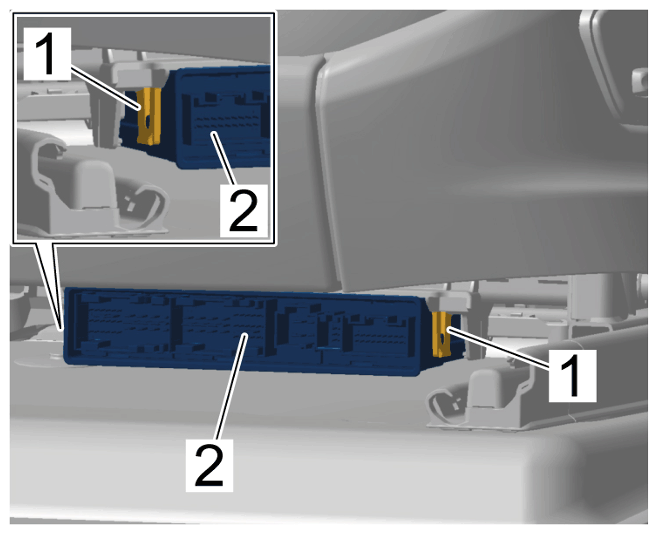

Release holder -1- and remove control unit for memory seat adjustment -2- from the seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control unit for memory seat adjustment
