Removing Rear-Seat Headrest

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Actuate release -arrow A-  and adjust headrest on rear seat -1-  to fully up position -arrow B-  .
    G15240506Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Headrest on rear seat

  2. Pull rear seat (middle seat) headrest out of the backrest frame.
  3. Only for headrest on rear seat at the left and right:

    Remove rear-seat headrest -1-  .

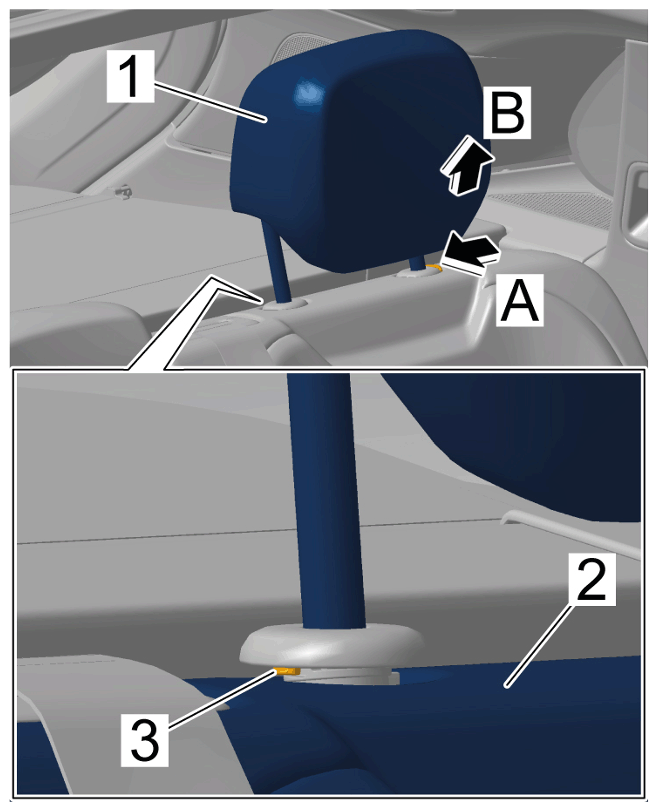

G15240507Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headrest on rear seat

  1. 3.1 Press down padding -2-  near the right headrest guide.
  2. 3.2 Actuate locking mechanism -3-  and release -arrow A-  and pull rear seat headrest -1-  out of the backrest frame -arrow B-  .
