Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2

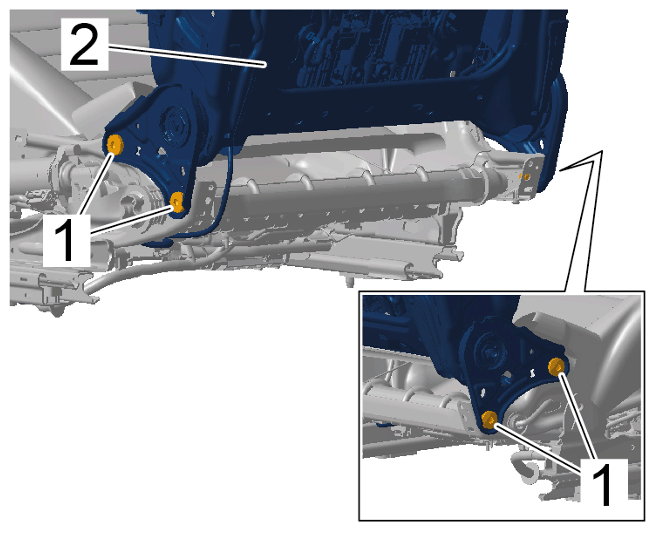

Screw securing backrest frame to seat frame Item 1 Tightening torque 33 Nm (25 ftlb.)
G15240466Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest frame
