Removing Backrest Frame

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

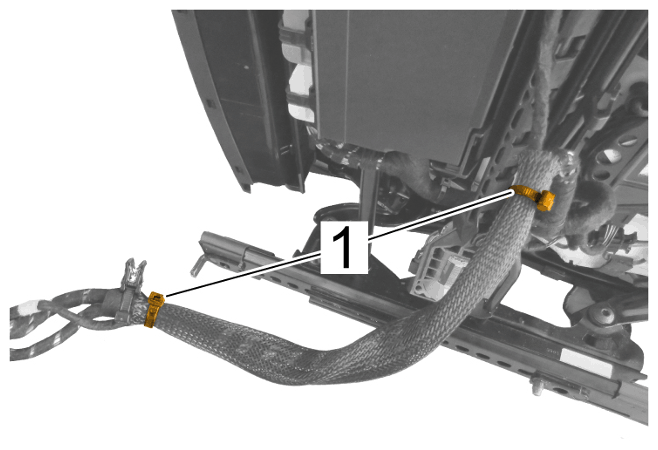

Cut tie-wrap -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie-wrap

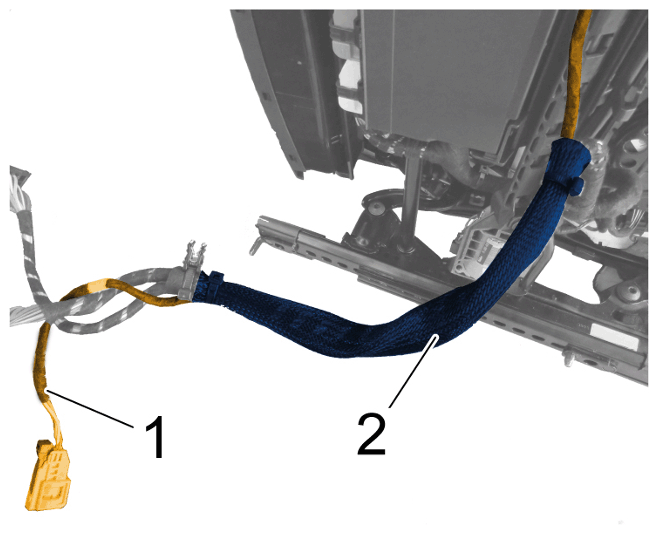

Guide line connection for side airbag -1- through the anti-chafing element -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line connection for side airbag

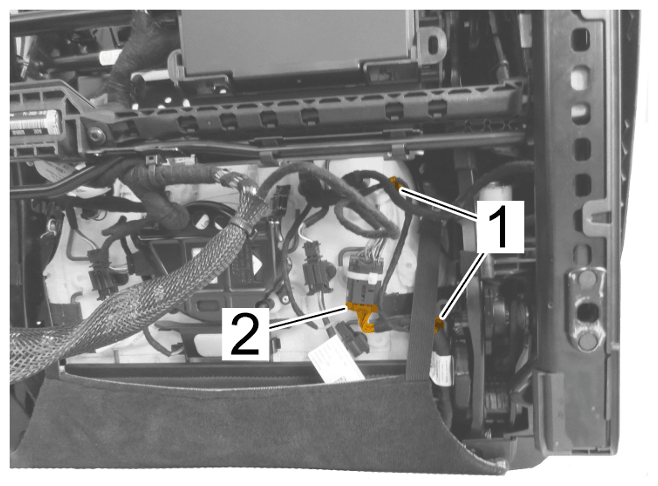

Unclip clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips
Release and disconnect electric plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line
Only for vehicles with front 18-way sports seats (I-no. Q1J):

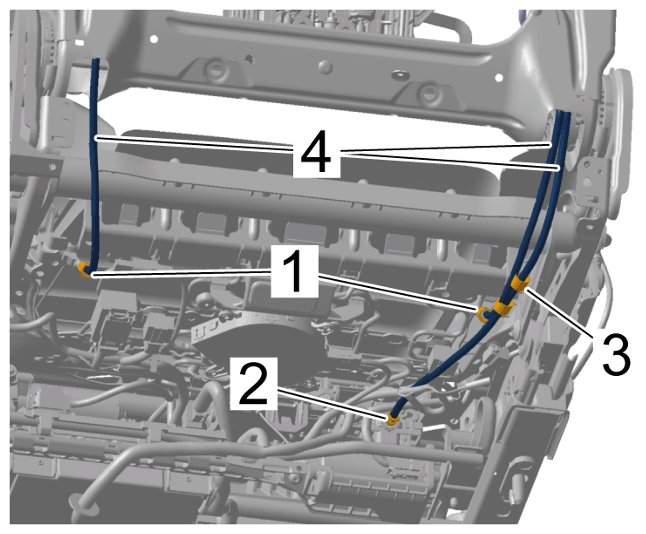

Disconnect air lines -4- under the seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose connections
1. 5.1 Release and disconnect hose connections -1- from air cushion for seat.
2. 5.2 Release and disconnect hose connection -2- from motor for air cushion.
3. 5.3 Unclip line bracket -3- at the seat frame.
4. 5.4 Expose air lines -4- towards the rear.
Drill out rivet -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rivet
Remove trim -2- .
Cover

Information

The help of another person is required.

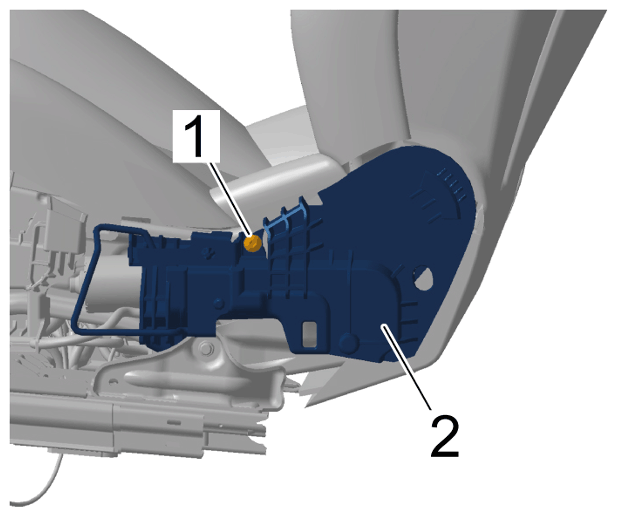

Unscrew screws -1- and remove backrest frame -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest frame
