Component Information
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

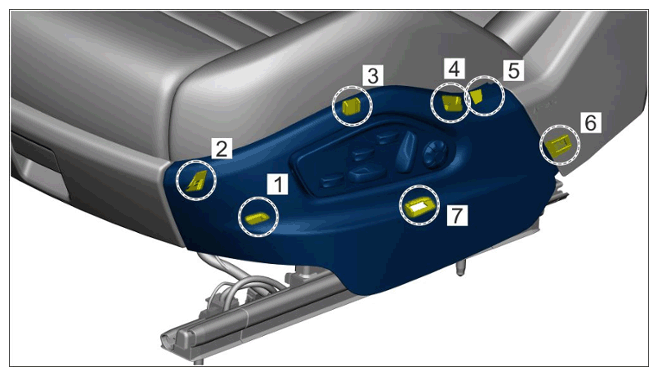

Mounting points
| 1 | Locking lugs, tab on adjacent component |
| 2 | Tab, locking lug on adjacent component |
| 3 | Tab, locking lug on adjacent component |
| 4 | Locking lug, tab on adjacent component |
| 5 | Hook, tab on adjacent component |
| 6 | Locking lug, tab on adjacent component |
| 7 | Hook, tab on adjacent component |

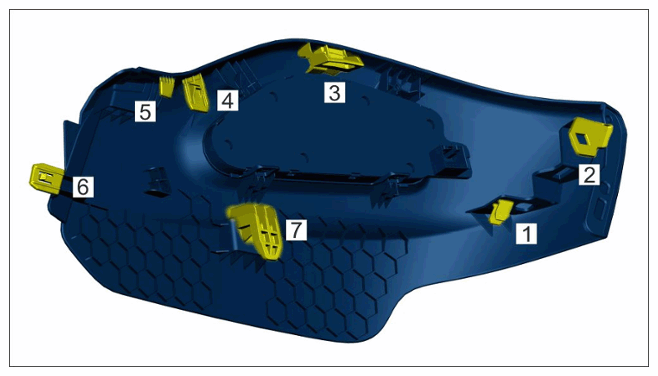

Mounting points
| 1 | Locking lug |
| 2 | Tab |
| 3 | Tab |
| 4 | Locking lug |
| 5 | Hook |
| 6 | Locking lug |
| 7 | Hook |
