Installing Motor For Sun Blind

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Align the sun blind so that it is parallel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

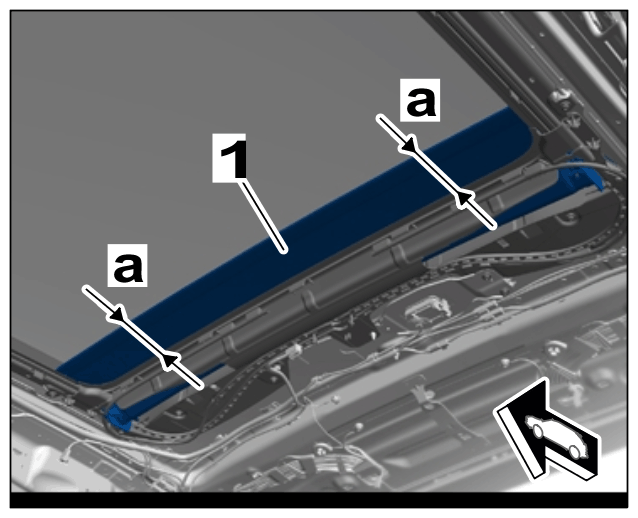

Sun blind clearance
1. 1.1 Set the same distance -a- between the front edge of the sun blind -1- and the sun blind module on both sides.
Install sun blind motor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

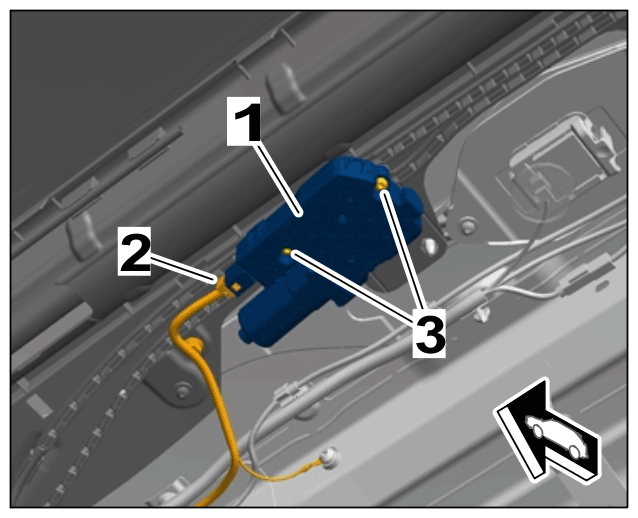

Sun blind motor
1. 2.1 Position sun blind motor -1- .
2. 2.2 Fit and tighten screws -3- .
  > Tightening torque 6 Nm (4.5 ftlb.)
3. 2.3 Connect and lock electric plug connection -2- .
