Removing Sun Blind Control Unit
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Unlock and pull off electric plug connections.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

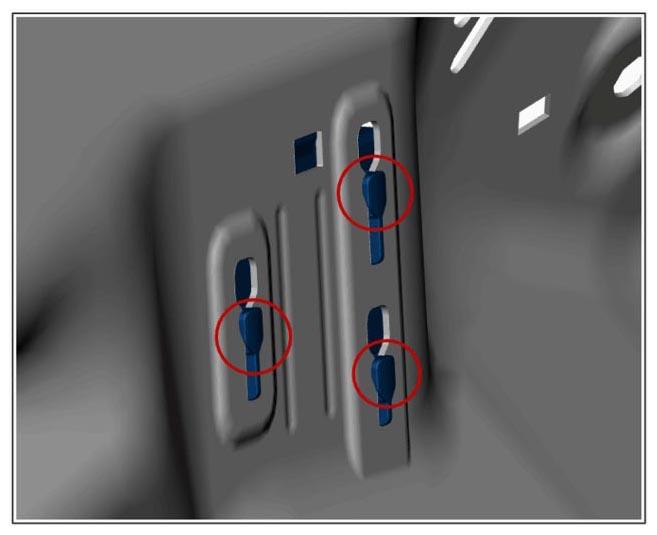

Electric plug connections
- Disengage sun blind control unit upwards from side panel.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

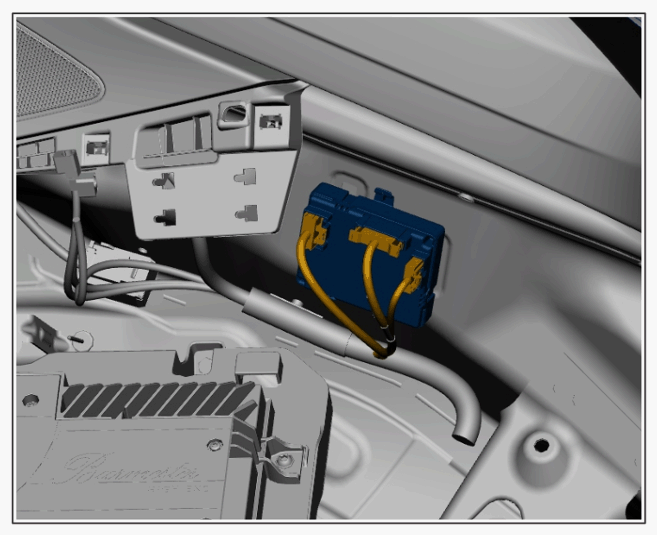

Sun blind control unit
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

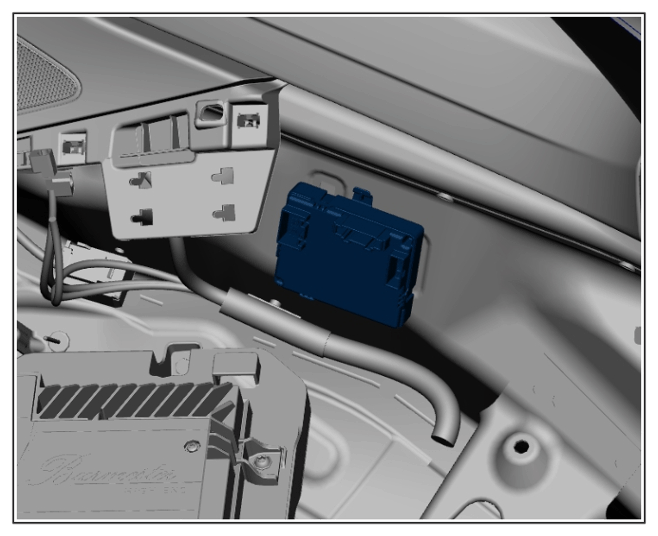

Rear view of sun blind control unit
