Removing Roof Sun Blind

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and disconnect electric plug connection on sun blind motor -1-  .

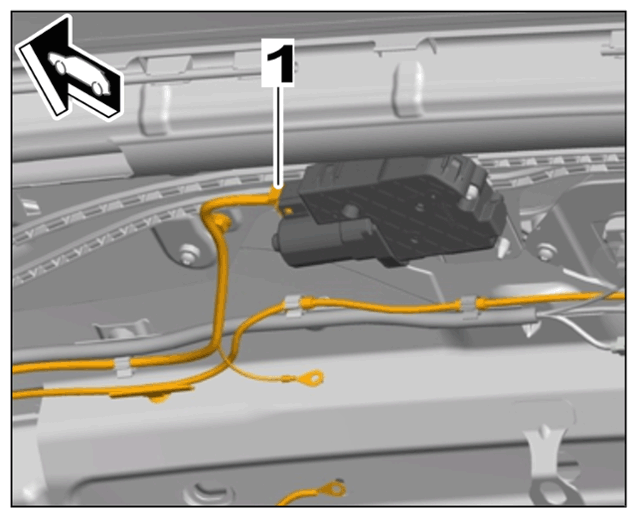

    G15238401Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sun blind motor

  2. Only for NAR vehicles - I-no.: ER3

    Remove SDARS antenna holder -1-  .

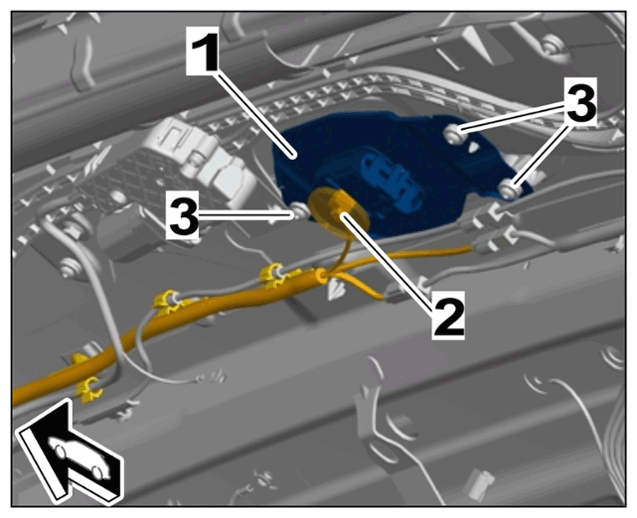

    G15238402Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    SDARS antenna holder

    1. 2.1 Release and disconnect electric plug connection on SDARS antenna -2-  .
    2. 2.2 Unscrew and remove screws -3-  .
    3. 2.3 Remove holder -1-  .
  3. Remove frame on roof sun blind -1-  with roof sun blind -2-  .

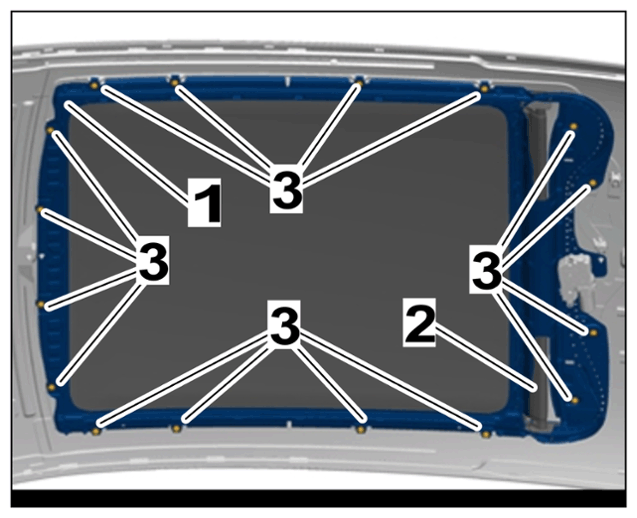

    G15238403Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Frame for roof sun blind

    1. 3.1 Unscrew screws on frame for roof sun blind -3-  .
    2. 3.2 Remove frame on roof sun blind -1-  together with roof sun blind -2-  .
