Disassembling Sun Blind Frame
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

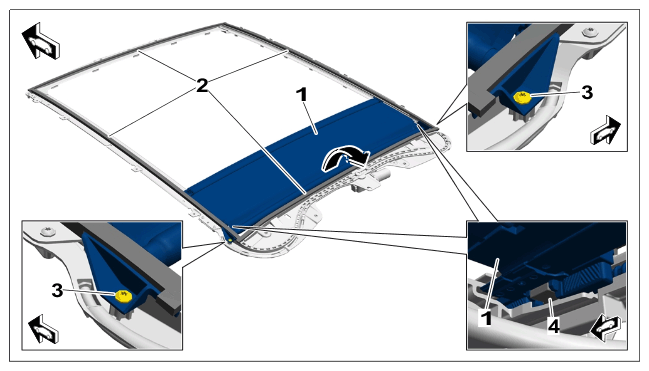

- Remove roof sun blind -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Roof sun blind
- 1.1 Pull off foam seals -2-
.
- 1.2 Unscrew and remove screws -3-
.
- 1.3 Slide roof sun blind -1-
out of the guide rails and unclip and remove operating cable driver -4-
.
