Removing Cover For Tray
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
Cover for tray must not
be turned upside down because otherwise the crash lock will be triggered.
- Unclip cover -1-
using a suitable tool -Arrows-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Cover
- Unscrew screws -2-
from cover for tray -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws on cover for tray

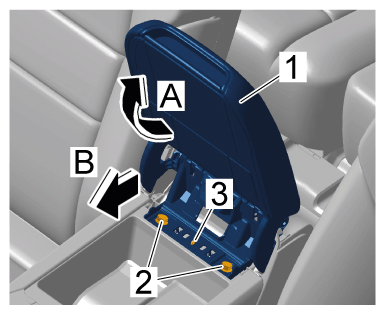

- Tilt cover for tray -1-
with cover base to the rear -arrow A-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Locating peg on cover for tray
- Pull cover for tray -1-
forward and remove it -arrow B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Cover for tray
