Installing Cover For Tray

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

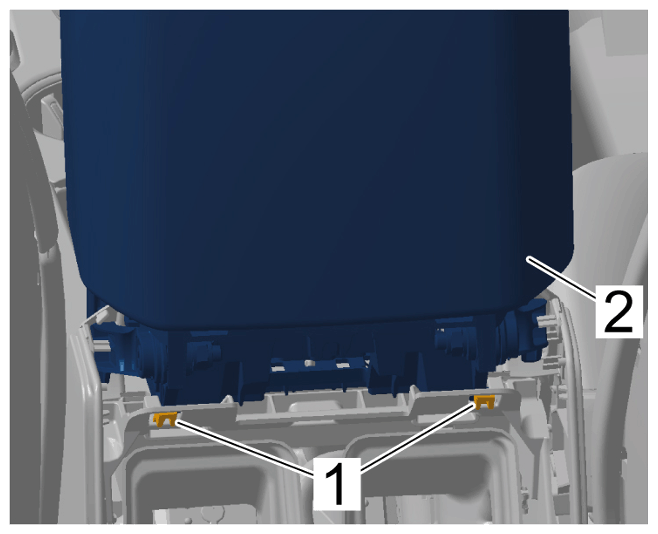

Insert guides -1- into the cut-outs on the centre console.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guides

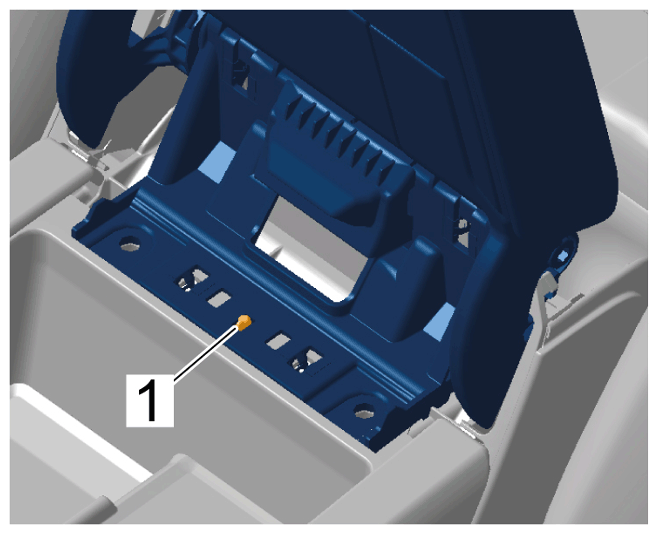

Guide inner guide -1- over the front locating peg.
Make sure that the bore in the base of the cover is above the front locating peg -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner guide
The remaining installation steps are performed in reverse order. Pay particular attention to the following:
Tightening torque for screws on cover for tray. > Tightening torque 20 Nm (15 ftlb.)
