Removing Front Handle

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Swivel front handle -1-  down -Arrow-  and hold it at this position.
    G15239021Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front handle

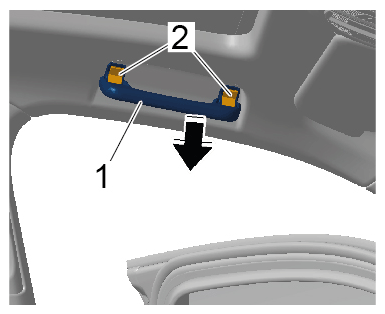

  2. Unclip locking mechanisms -2-  using a suitable tool and remove front handle -1-  .
    G15239022Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front handle
