Removing Rear Ashtray
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

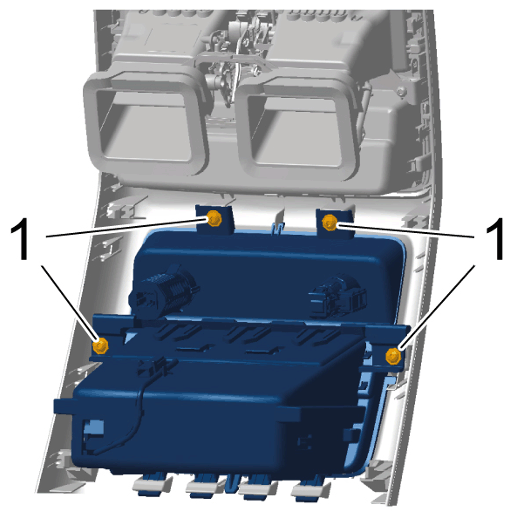

- Unscrew fastening screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening screws

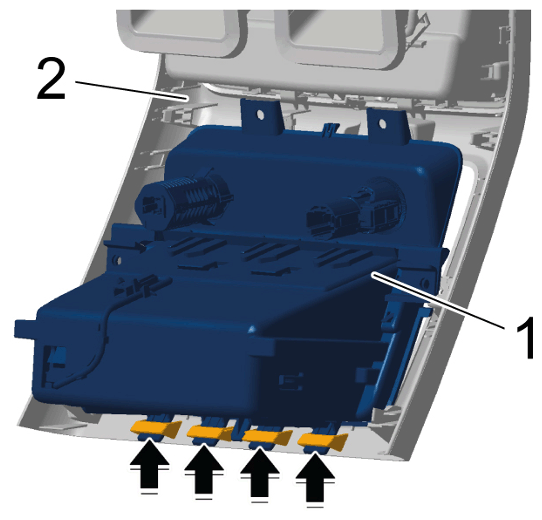

- Remove rear ashtray -1-
together with cover from rear centre console cover -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear ashtray with cover

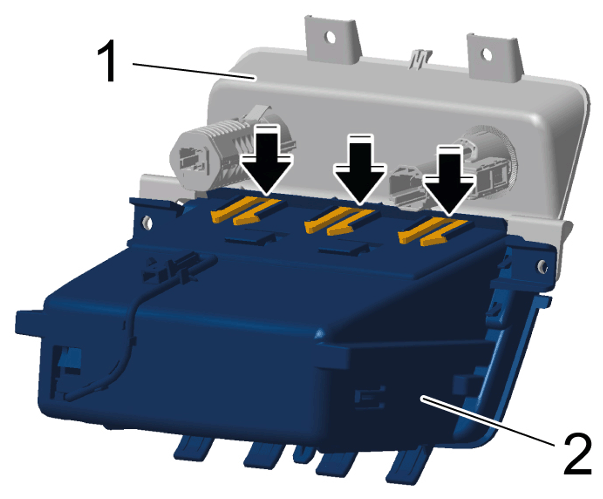

- Unclip cover -1-
from rear ashtray -2-
(-Arrows-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear ashtray
