Technical Values
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Screws securing grab handle to upper part of centre console |
Item 1 |
Tightening torque |
8 Nm (6 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grab handles |

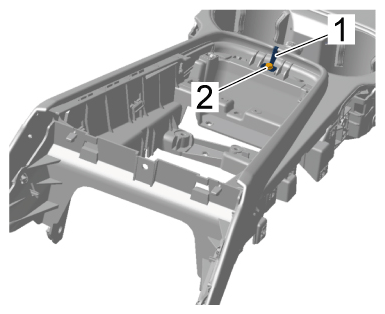

| Screw securing trim element to centre console |
Item 2 |
Tightening torque |
1.5 Nm (1 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Trim element |
