Removing Centre Console Cover (Frame)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

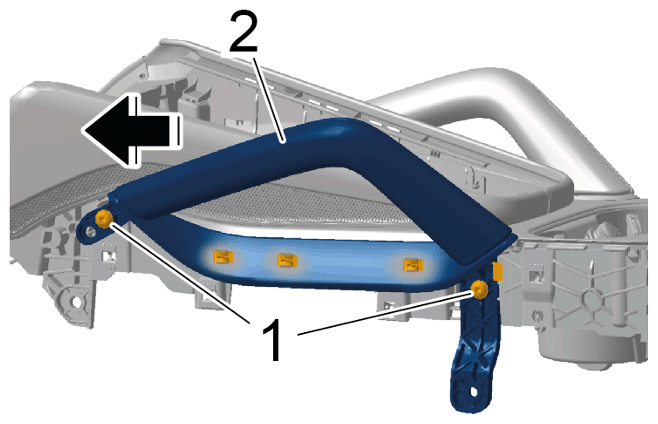

Unscrew screws -1- on both sides and remove grab handle at the left -2- and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grab handle

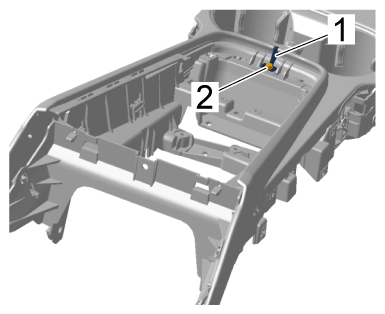

Remove trim element -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim element
1. 2.1 Unscrew screw -2- .
2. 2.2 Remove trim element -1- .

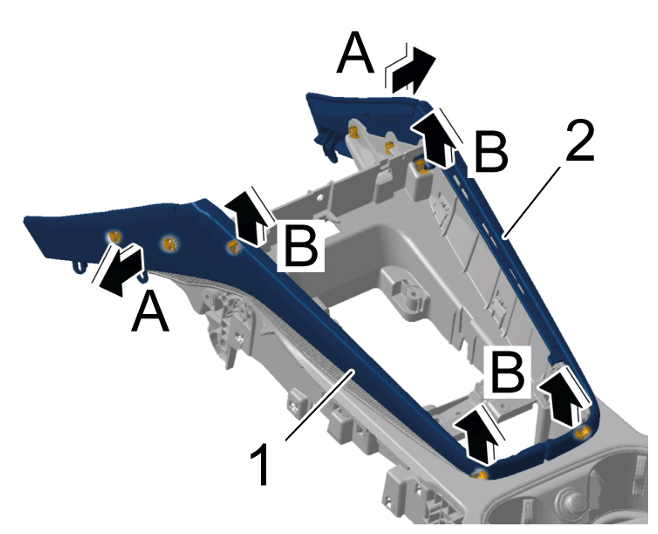

Remove trim panels -1 and 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left and right trims
1. 3.1 Unclip trims -1 and 2- at the front -arrows A- .
2. 3.2 Unclip trims -1 and 2- at the top -arrows B- .
3. 3.3 Remove trims -1 and 2- .

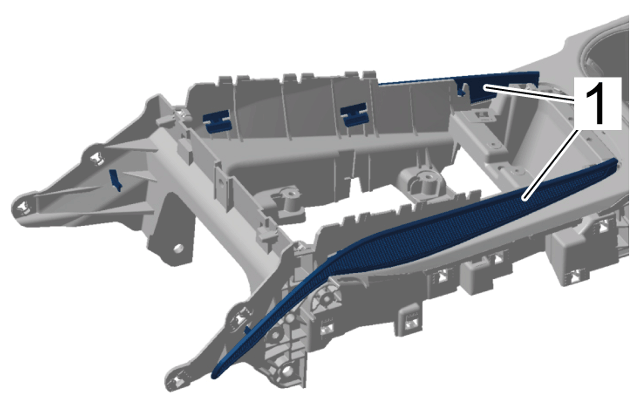

Lift up and remove trims -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trims

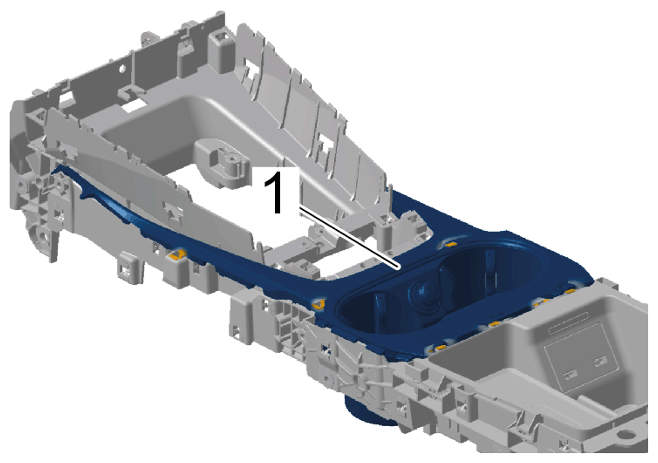

Unclip centre console cover (frame) -1- with cupholder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre console cover (frame)

Only when replacing components:
Remove cupholder.
> 683019 REMOVING AND INSTALLING CUPHOLDER
