Disassembling Centre Console

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove KESSY/PAS antenna (on centre console).

    > WM, 966719 REMOVING AND INSTALLING KESSY/PAS ANTENNA (CENTRE CONSOLE)

  2. Remove USB/IPOD control unit.

    > WM, 919319 REMOVING AND INSTALLING USB/IPOD CONTROL UNIT

  3. Remove console cover.

    > WM, 681919 REMOVING AND INSTALLING UPPER PART OF CENTRE CONSOLE COVER

  4. Unscrew screws -1-  on both sides and unclip grab handle at the left -2-  and right by pulling them forward -Arrow-  .

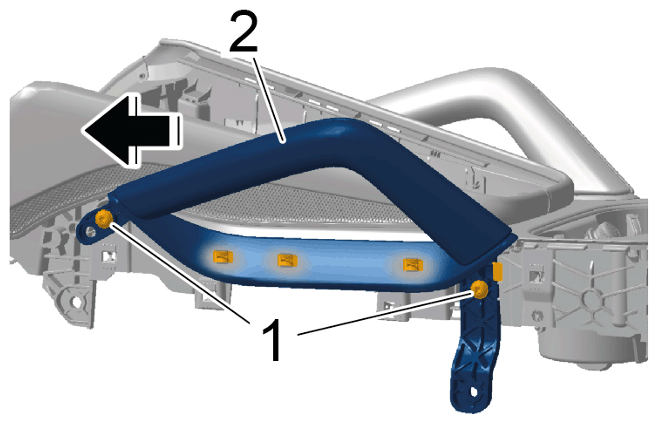

    G15238953Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Grab handle

  5. Remove trim -1-  from grab handle -2-  .

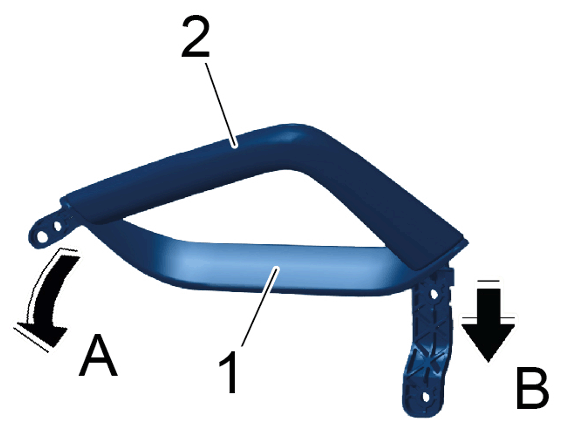

    G15238954Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim on grab handle

    1. 5.1 Unclip -Arrow A-  trim -1-  from grab handle -2-  .
    2. 5.2 Unclip -Arrow B-  trim -1-  from grab handle -2-  and remove it from the grab handle -2-  .
  6. Remove trim element -1-  .
    G15238955Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim element

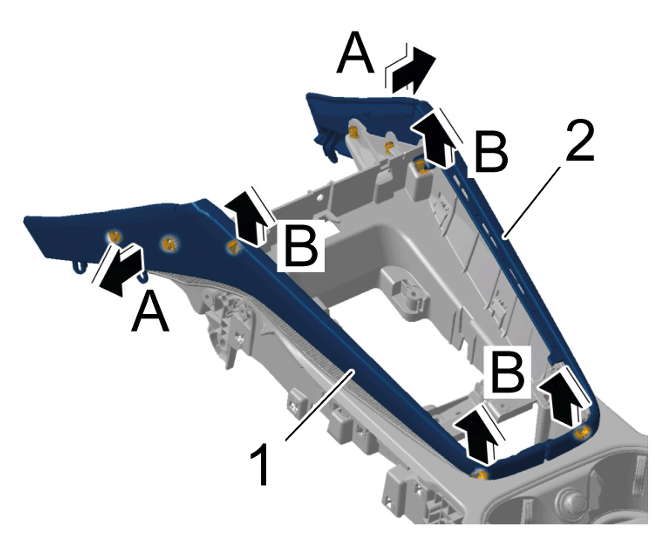

  7. Remove trims -1 and 2-  .
    G15238956Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left and right trims

    1. 7.1 Unclip trims -1 and 2-  at the front -Arrow A-  .
    2. 7.2 Unclip trims -1 and 2-  at the top -Arrow B-  .
    3. 7.3 Remove trim panels -1 and 2-  .

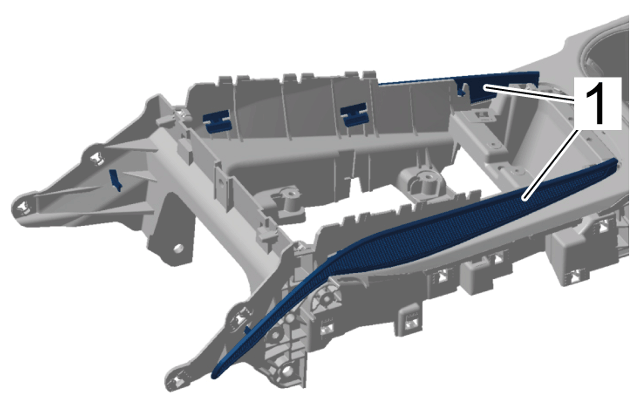

  8. Lift up and remove trims -1-  .
    G15238957Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trims

    Information

    Before getting started, remove the fuse for the 12-Volt socket.

    Left-hand drive: Fuse A9 in fuse holder C on fuse box on left of dashboard

    Trailing arm: Fuse A5 in fuse holder F on fuse box in dashboard, right

  9. Remove cover with cupholder.

    Information

    The use of the 12-Volt socket will be damaged irreparably during removal.

    Replace insert during installation.

    1. 9.1 Loosen 12-volt socket.
      1. 9.1.1 Socket insert -1-  must now be pulled off.

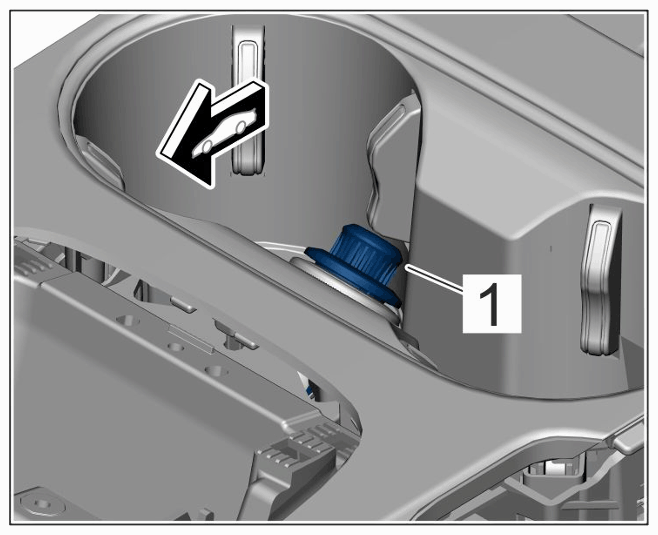

        G15238958Courtesy of PORSCHE CARS NORTH AMERICA, INC.

        Socket insert

      2. 9.1.2 Release locking lugs -2-  on the 12-Volt socket -1-  .

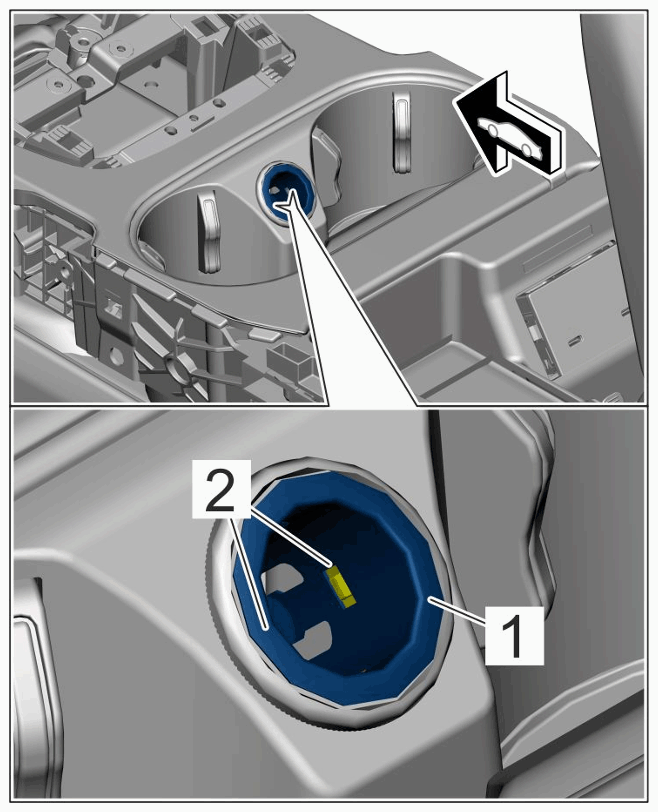

        G15238959Courtesy of PORSCHE CARS NORTH AMERICA, INC.

        Locking lugs

        Insert a small screwdriver into the gap at the locking lugs.

        Open up the plate by turning the screwdriver.

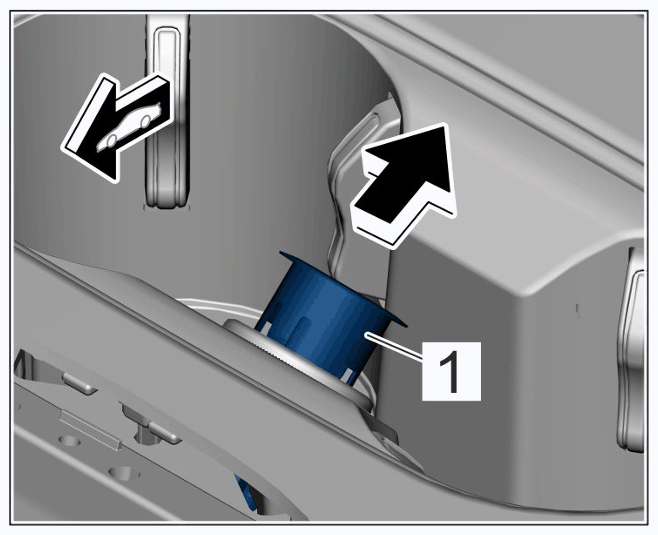

      3. 9.1.3 Pull 12-volt socket -1-  up as far as possible.
      G15238960Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      12-volt socket

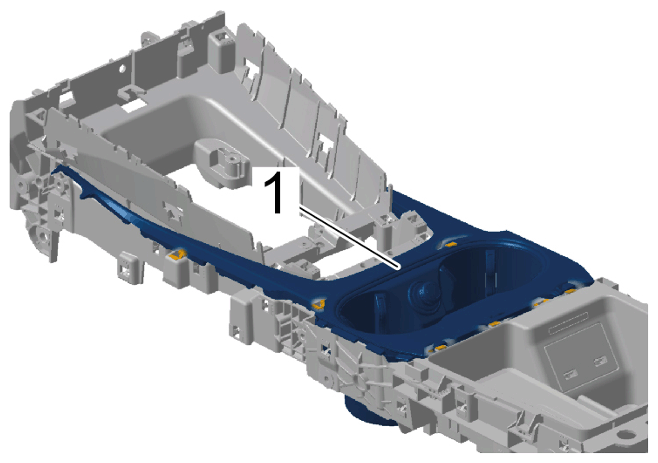

    2. 9.2 Unclip cover -1-  with cupholder.
      G15238961Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cover

    3. 9.3 Lift up cover with cup holder as far as possible.

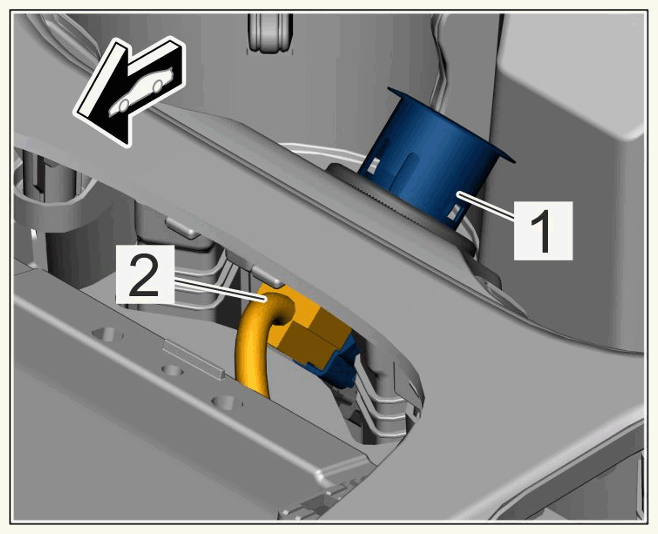

    4. 9.4 Disconnecting plug connection -2-  on 12-volt socket -1-  .
      G15238962Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Plug connection

    5. 9.5 Remove cover with cup holder.
    6. 9.6 Remove 12-volt socket.

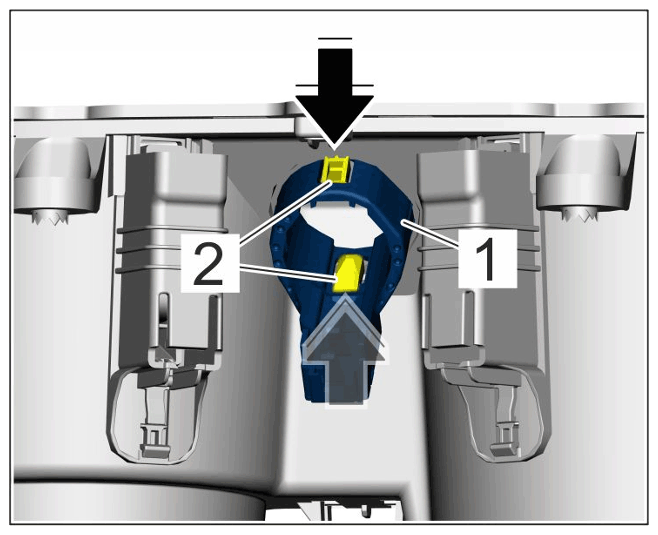

    7. 9.7 Release light ring -1-  .
      G15238963Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Light ring

      1. 9.7.1 Press locking lug -2-  .
      2. 9.7.2 Remove light ring -1-  .

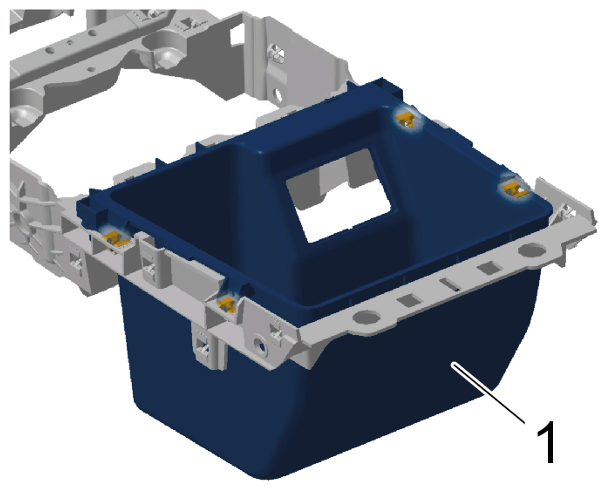

  10. Unclip storage compartment -1-  .
    G15238964Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Storage compartment
