Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

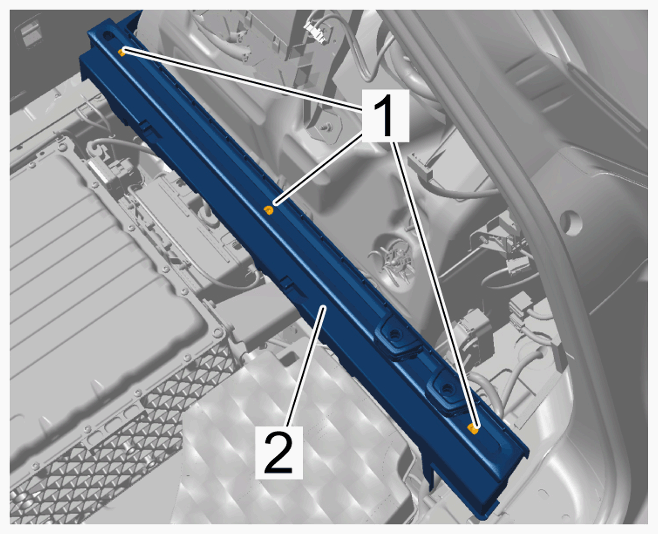

Screw securing luggage rail to body	Item 1	Tightening torque	12 Nm (8.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Luggage rail

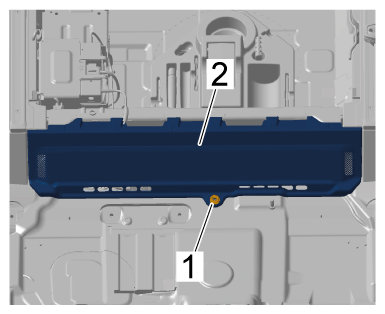

Nut securing front floor cover to body	Item 1	Tightening torque	2 NM (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front floor cover

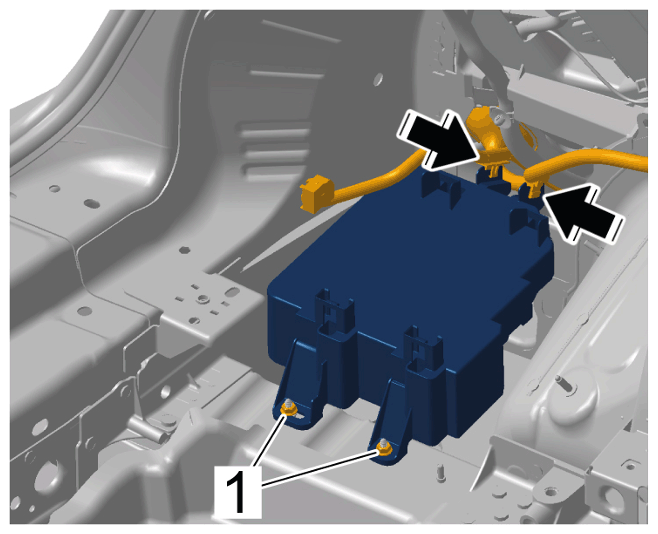

Fastening nuts for rear-end electronics control unit holder	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric wire harness
