Removing Central Locking Switch

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

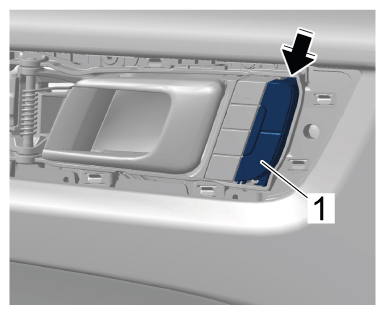

1. Unclip switch for central locking system -1-  using a suitable tool -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Switch for central locking system

2. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

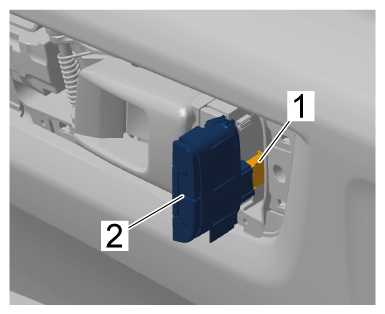

3. Remove switch for central locking system -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Switch for cental locking system
