Removing Trim Frame For Tailpipe Cover
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Unscrew screw -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

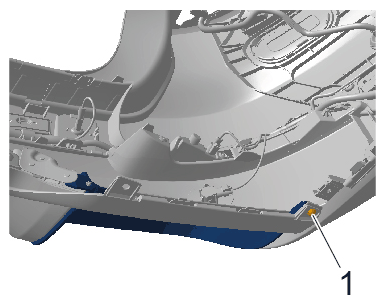

Screw on trim frame for tailpipe cover
- Removing trim frame for tailpipe cover -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

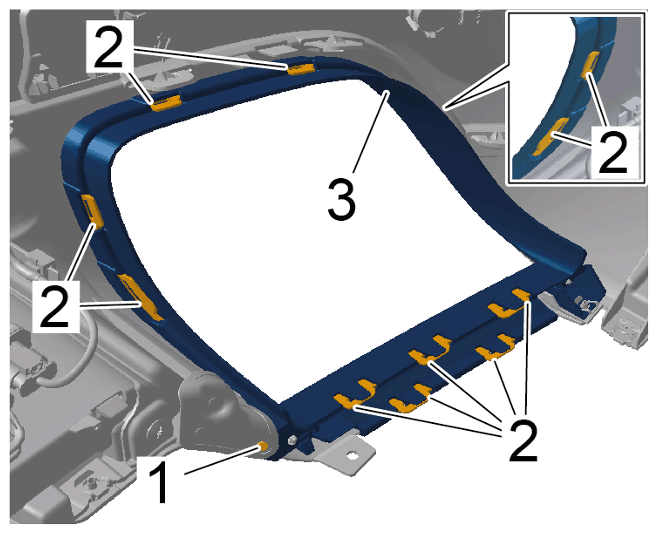

Trim frame for tailpipe cover
- 2.1 Drill out rivet -1-
on heat shield.
- 2.2 Release locking lugs -2-
and remove trim frame on tailpipe cover -3-
.
