Removing Centre Retaining Strip

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTIFICATION

Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

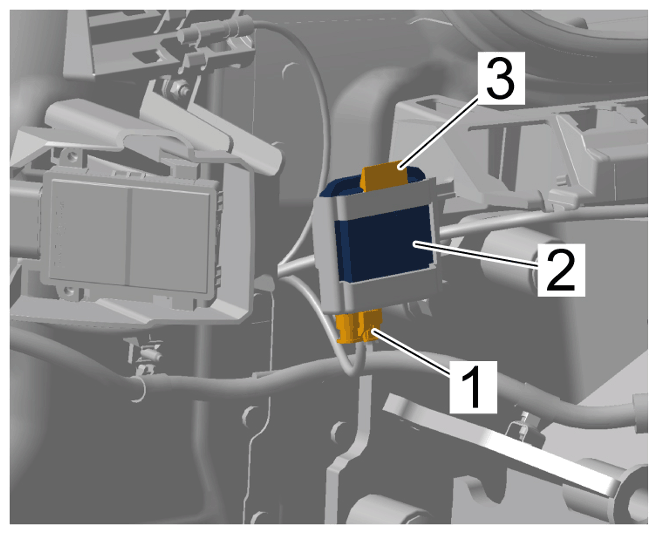

Remove control unit for garage door opener -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
1. 1.1 Release and unplug electric plug connection -1- .
2. 1.2 Release locking lug -3- and remove control unit for garage door opener -2- .

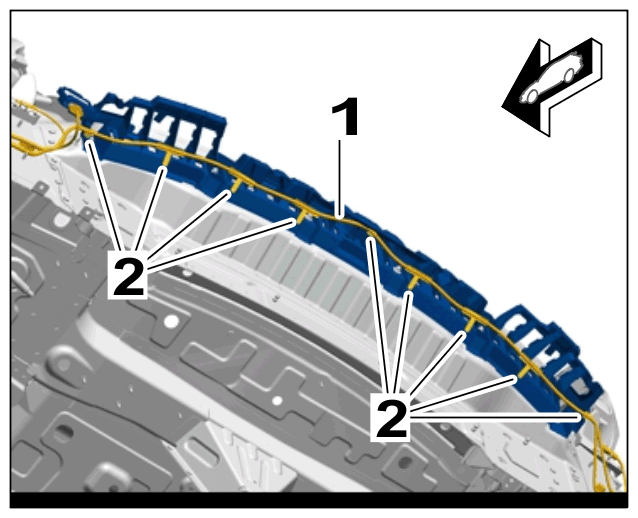

Disconnect wire harness -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness
1. 2.1 Unclip clips -2- and disconnect wire harness -1- .

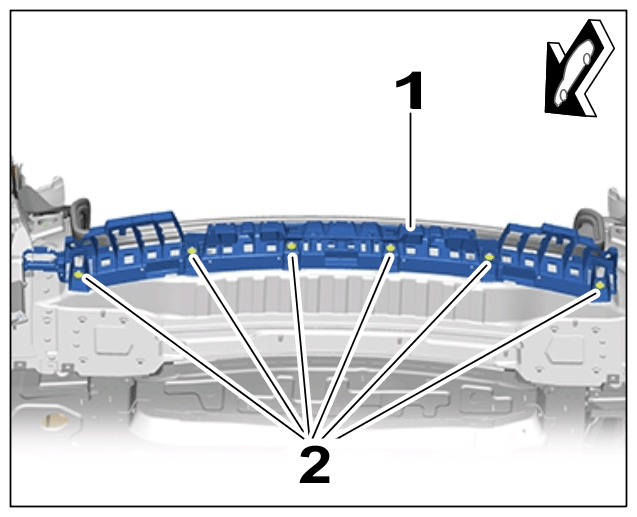

Remove centre retaining strip -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre retaining strip
1. 3.1 Unscrew nuts -2- .
2. 3.2 Remove centre retaining strip -1- .
