Installing Side Retaining Strip

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order. Pay particular attention to the following:

Information

Carefully clean any dirt, grease, wax and other impurities off the fitting area of the body using isopropanol.
Always use a clean cloth.
The room and object temperature must be at least +18°C.
Air humidity must be 40% - 60%.

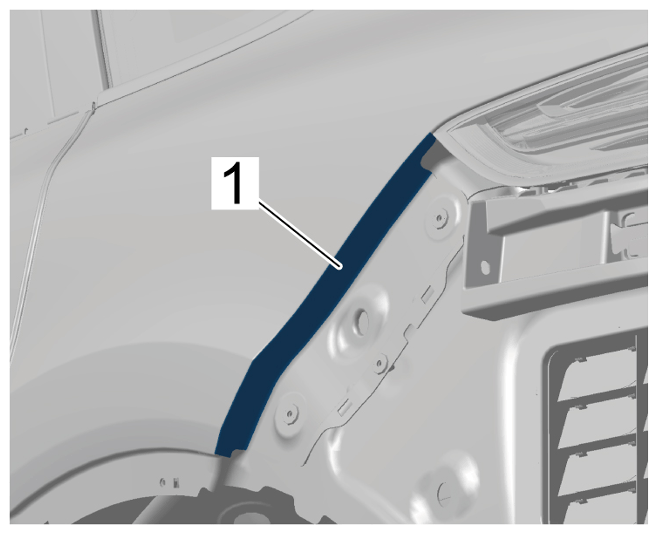

Check anti-chafing film -1- for damage and replace it if necessary -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Anti-chafing film
Tighten screws -1 and 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

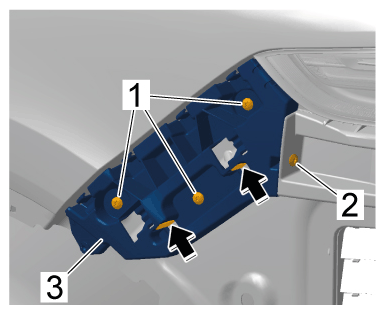

Side retaining strip
1. 2.1 Tighten screws -1- .
  > Tightening torque 3 Nm (2 ftlb.)
2. 2.2 Tighten screw -2- .
  > Tightening torque 2.5 Nm (1.75 ftlb.)
